Name: 0039295143
Brand: Molex
SKU: 0039295143
Price: 5.59000 USD
Availability: InStock

new-10%

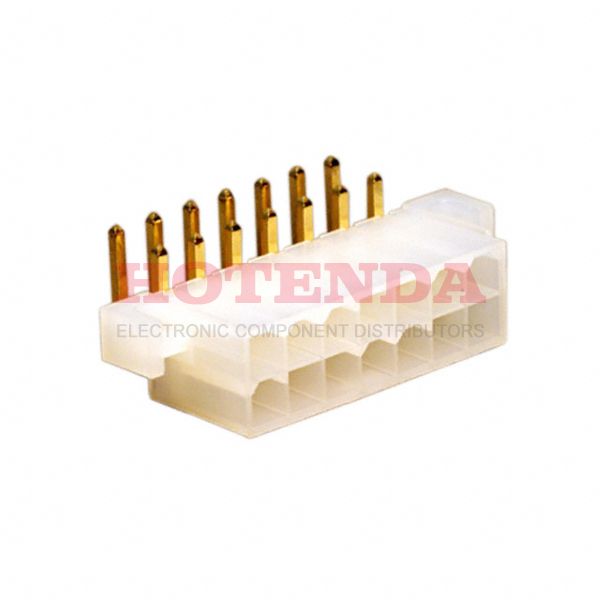

0039295143

Manufacturer part number:0039295143

Manufacturer:Molex

Description:0039295143 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0039295143 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Packaging	Bulk
Series	Mini-Fit Jr 5569
JESD-609 Code	e4
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	14
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	2
Additional Feature	POLARIZED
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.378 9.60mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Empty Shell	NO
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-2
RoHS Status	ROHS3 Compliant

0039295143 Product Details

0039295143 Overview

It comes in Header packaging.The mounting type of the device is Through Hole, Right Angle.This product is packaged in a case marked Bulk.The product belongs to the Mini-Fit Jr 5569 Series.There are also other features such as POLARIZED, to name only a few.There is the possibility of using the device for General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Mounting Flange feature.
