Name: 0039291228
Brand: Molex
SKU: 0039291228
Price: 4.83000 USD
Availability: InStock

new-10%

0039291228

Manufacturer part number:0039291228

Manufacturer:Molex

Description:0039291228 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0039291228 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Brass
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Packaging	Bulk
Series	Mini-Fit Jr 5569
JESD-609 Code	e3
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	22
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	2
Additional Feature	POLARIZED
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.378 9.60mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Empty Shell	NO
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-2
RoHS Status	ROHS3 Compliant

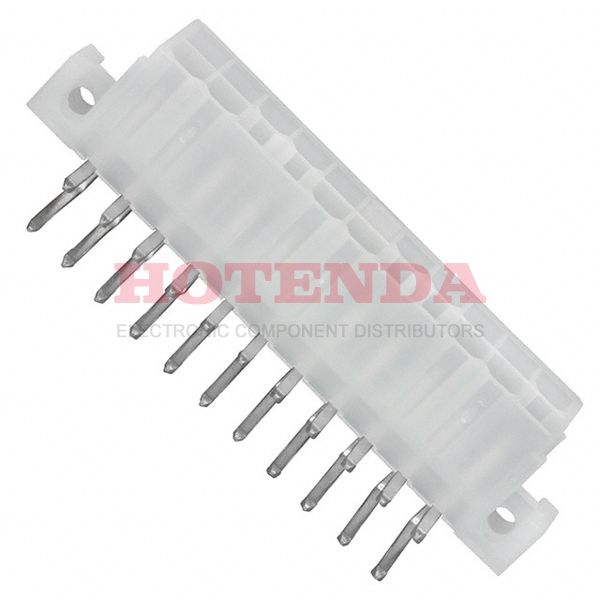

0039291228 Product Details

0039291228 Overview

You'll get Header packages.This device is mounted in the Through Hole, Right Angle position.A Bulk case is used to package the product.A member of the Mini-Fit Jr 5569 Series.There are also other features, like POLARIZED, to name a few.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.This feature renders it more powerful in a number of ways because of its Mounting Flange feature.
