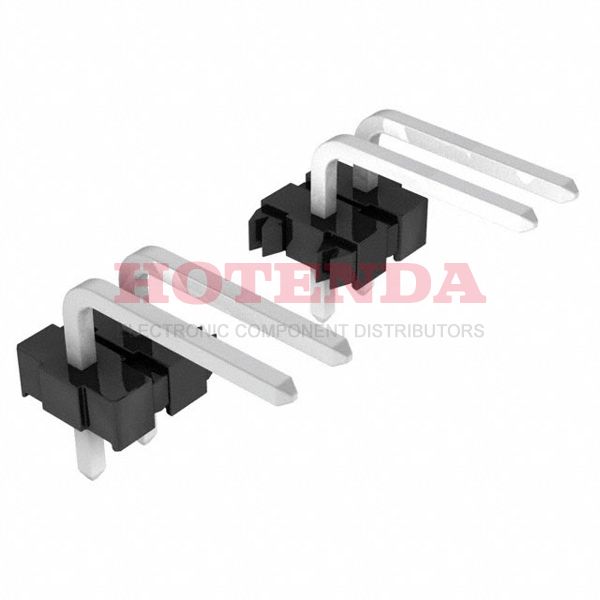

Name: 0026481132
Brand: Molex
SKU: 0026481132
Price: 1.32000 USD
Availability: InStock

new-10%

0026481132

Manufacturer part number:0026481132

Manufacturer:Molex

Description:0026481132 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0026481132 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Housing Material	Polyester
Packaging	Bulk
Series	KK 41662
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	1
Gender	Male
Additional Feature	POLARIZED
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Right Angle, Vertical
Terminal Pitch	3.96mm
Depth	18.42mm
Insulation Height	0.128 3.25mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	7A
Pitch - Mating	0.156 3.96mm
Contact Length - Post	0.184 4.67mm
Shrouding	Unshrouded
Number of Contacts	13
Contact Length - Mating	0.573 14.55mm
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	6mOhm
Max Voltage Rating (AC)	250V
Length	50.37mm
Contact Finish Thickness - Mating	60.0μin 1.52μm
Contact Finish Thickness - Post	60.0μin 1.52μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0026481132 Product Details

0026481132 Overview

A Header, Breakaway packaging is included.There is a mounting type of Through Hole, Right Angle for this device.An orange Bulk case is used to package the product.The product is a member of the KK 41662 Series.Then there's POLARIZED, for example.You should use it at a temperature below 105°C.Temperature must be -40°C to operate this device.There is the possibility of using the device for Automotive, General Purpose, Industrial, Medical, Telecommunications.Through Hole is the mounting point for the part.
