Name: 0022284350
Brand: Molex
SKU: 0022284350
Price: 1.20000 USD
Availability: InStock

new-10%

0022284350

Manufacturer part number:0022284350

Manufacturer:Molex

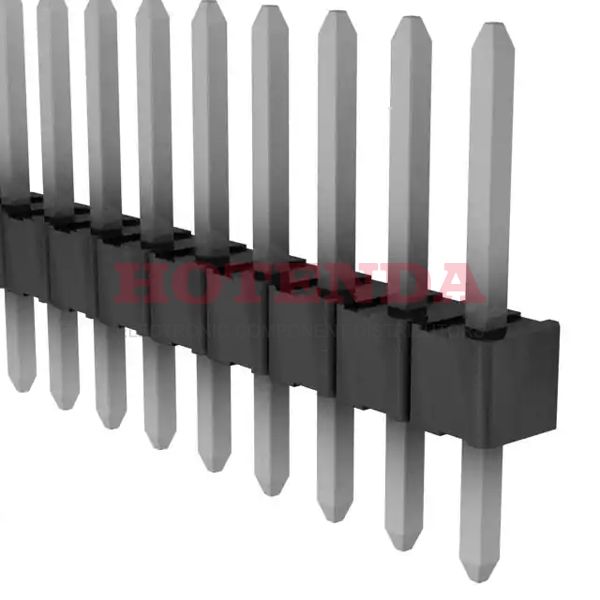

Description:0022284350 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022284350 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Housing Material	Thermoplastic
Packaging	Bulk
Series	KK 42375
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	35
Max Operating Temperature	75°C
Min Operating Temperature	0°C
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Terminal Pitch	2.54mm
Depth	2.49mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	4A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Overall Contact Length	0.455 11.56mm
Contact Resistance	20mOhm
Number of Circuits	34
Max Voltage Rating (AC)	250V
Length	88.9mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

0022284350 Product Details

0022284350 Overview

The product comes in a package of Header, Breakaway.This device has a mounting type of Through Hole.In order to package the product, a Bulk case is used.As a product of the KK 42375 Series, it can be found in this category.Temperatures below 75°C are best for using it.A minimum temperature of 0°C is required for the operation of this device.The device could be used for Automotive, General Purpose, Medical, Telecommunications.There's a Through Hole mount on the part.Circuits number 34.
