Name: 0022284204
Brand: Molex
SKU: 0022284204
Price: 1.52000 USD
Availability: InStock

new-10%

0022284204

Manufacturer part number:0022284204

Manufacturer:Molex

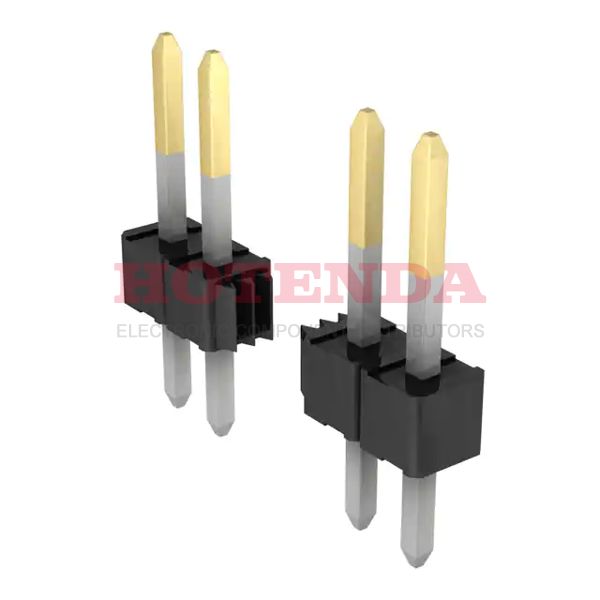

Description:0022284204 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022284204 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	NOT SPECIFIED
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42375
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	20
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.120 3.05mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.320 8.13mm
UL Flammability Code	94V-0
Overall Contact Length	0.530 13.46mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0022284204 Product Details

0022284204 Overview

The product comes in a package of Header, Breakaway.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.It's part of the KK 42375 Series.Automotive, General Purpose, Medical, Telecommunications is a possible application for the device.
