Name: 0022284203
Brand: Molex
SKU: 0022284203
Price: 1.41000 USD
Availability: InStock

new-10%

0022284203

Manufacturer part number:0022284203

Manufacturer:Molex

Description:0022284203 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022284203 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	BRASS
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42375
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	20
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Overall Contact Length	0.455 11.56mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

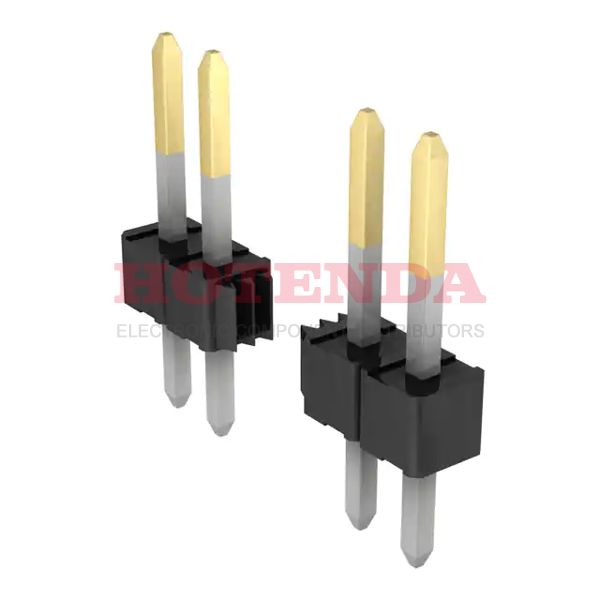

0022284203 Product Details

0022284203 Overview

Packaging is Header, Breakaway.Through Hole is the mount type.Packaging is performed using a Bulk case.This product is part of the KK 42375 Series.Here's a possible application for the device: Automotive, General Purpose, Medical, Telecommunications.
