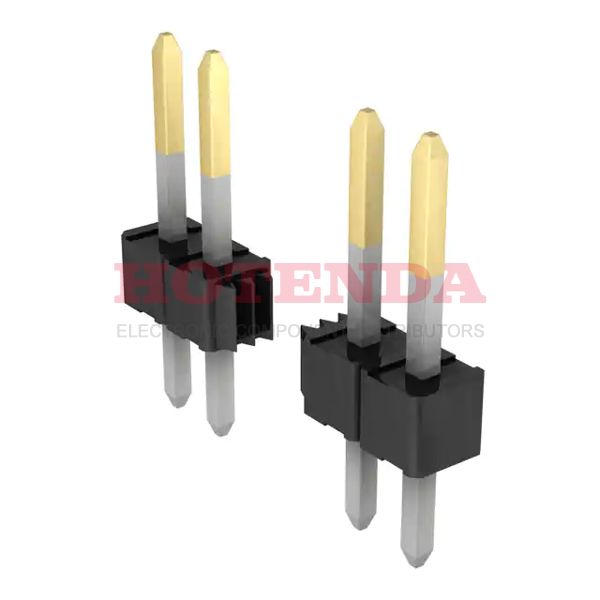

Name: 0022284096
Brand: Molex
SKU: 0022284096
Price: 0.33000 USD
Availability: InStock

new-10%

0022284096

Manufacturer part number:0022284096

Manufacturer:Molex

Description:0022284096 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022284096 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	NOT SPECIFIED
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42375
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	9
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Overall Contact Length	0.455 11.56mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0022284096 Product Details

0022284096 Overview

You'll get Header, Breakaway packages.A Through Hole mounting type is specified for the device.In order to package the product, a Bulk case is used.The product is part of the KK 42375 Series.Automotive, General Purpose, Medical, Telecommunications is one possible application.
