Name: 0022284080
Brand: Molex
SKU: 0022284080
Price: 0.35000 USD
Availability: InStock

new-10%

0022284080

Manufacturer part number:0022284080

Manufacturer:Molex

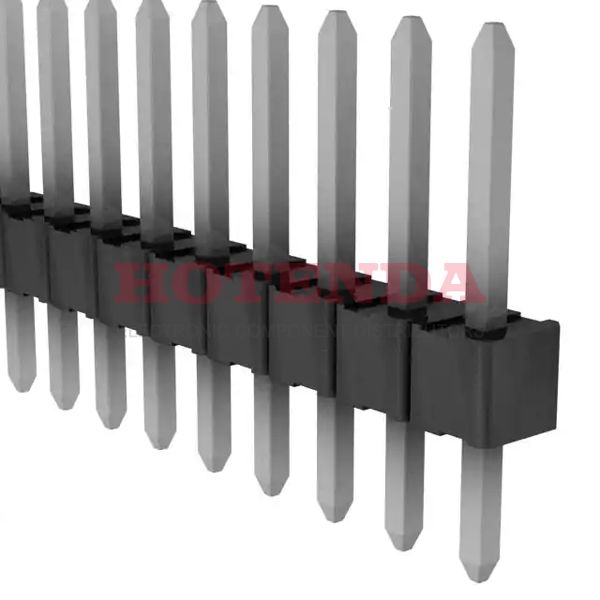

Description:KK 42375 Series 1-Row Header, Breakaway Solder BRASS Bulk Through Hole Tin Polyamide (PA), Nylon, Glass Filled 8-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:0022284080 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	BRASS
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42375
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	8
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Overall Contact Length	0.455 11.56mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0022284080 Product Details

0022284080 Overview

Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the KK 42375 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose, Medical, Telecommunications.
