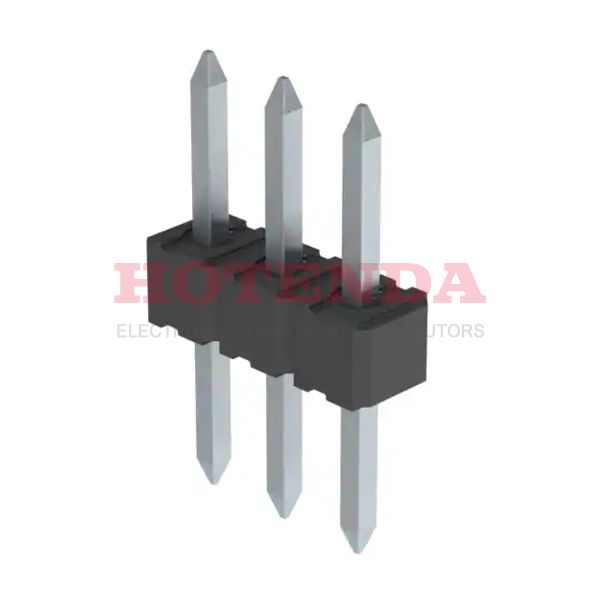

Name: 0022284032
Brand: Molex
SKU: 0022284032
Price: 0.17000 USD
Availability: InStock

new-10%

0022284032

Manufacturer part number:0022284032

Manufacturer:Molex

Description:0022284032 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022284032 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	BRASS
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42375
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	3
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.120 3.05mm
Shrouding	Unshrouded
Contact Length - Mating	0.295 7.49mm
UL Flammability Code	94V-0
Overall Contact Length	0.505 12.83mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0022284032 Product Details

0022284032 Overview

Packaging for this item is Header, Breakaway.Mounting type Through Hole is assigned to the device.A Bulk case is used for packaging.Specifically, it is one of the products in the KK 42375 Series.An application for the device could be Automotive, General Purpose, Medical, Telecommunications.
