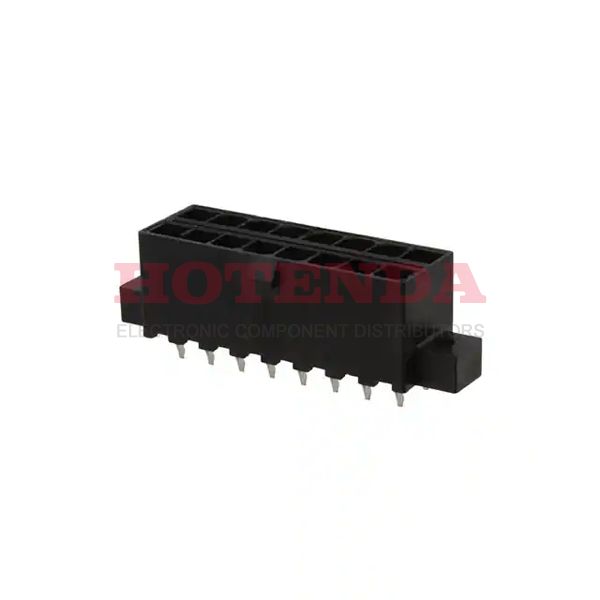

Name: 0015977162
Brand: Molex
SKU: 0015977162
Price: 2.66000 USD
Availability: InStock

new-10%

0015977162

Manufacturer part number:0015977162

Manufacturer:Molex

Description:0015977162 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015977162 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass Alloy
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester
Packaging	Tray
Series	Mini-Fit TPA 30069
JESD-609 Code	e3
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	16
Applications	Automotive, Industrial, Telecommunications
Number of Rows	2
Additional Feature	POLARIZED
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Insulation Height	0.504 12.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Black
Row Spacing - Mating	0.217 (5.51mm)
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 4 Wall
UL Flammability Code	94V-0
Empty Shell	NO
Contact Finish Thickness - Mating	35.4μin 0.90μm
Contact Finish Thickness - Post	35.0μin 0.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015977162 Product Details

0015977162 Overview

Header packaging is included.The mounting type of the device is Through Hole.To package the product, a Tray case is used.Among the products in the Mini-Fit TPA 30069 Series, it is one of the most popular.In addition, there are other features, such as POLARIZED, to mention just a few.There's an application for the device called Automotive, Industrial, Telecommunications.There are a number of advantages to its Mounting Flange feature.
