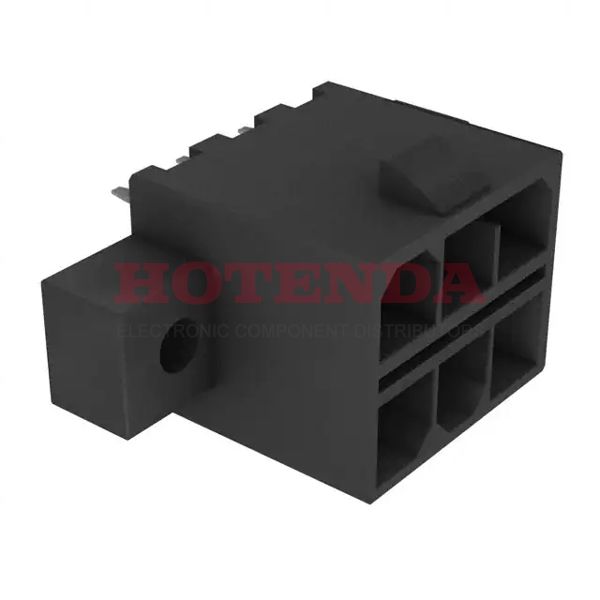

Name: 0015977064
Brand: Molex
SKU: 0015977064
Price: 2.10000 USD
Availability: InStock

new-10%

0015977064

Manufacturer part number:0015977064

Manufacturer:Molex

Description:0015977064 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015977064 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Brass Alloy
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester
Packaging	Bulk
Series	Mini-Fit TPA 30069
JESD-609 Code	e3
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	6
Applications	Automotive, Industrial, Telecommunications
Number of Rows	2
Additional Feature	POLARIZED
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Insulation Height	0.504 12.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.165 4.20mm
Insulation Color	Black
Row Spacing - Mating	0.217 (5.51mm)
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Empty Shell	NO
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015977064 Product Details

0015977064 Overview

This product is packaged in a Header box.Through Hole indicates that the device is mounted.We pack the product in a Bulk case.It's from the Mini-Fit TPA 30069 Series.Moreover, there are a number of other features, including POLARIZED, to name just a few.A possible application for the device is Automotive, Industrial, Telecommunications.A number of advantages are provided by its Mounting Flange feature.
