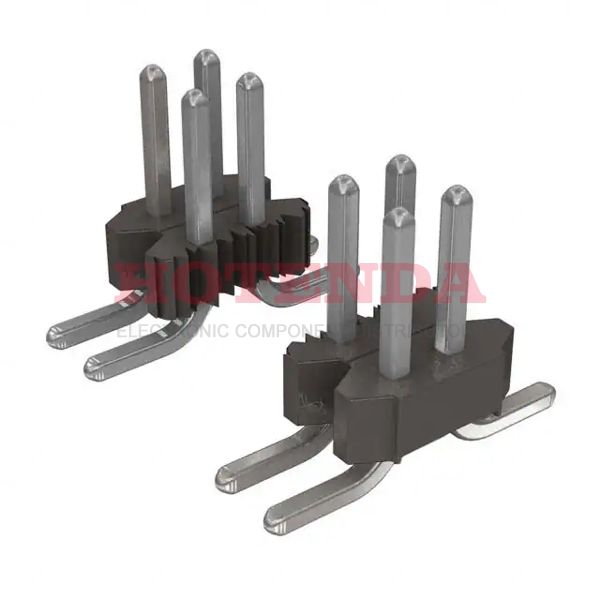

Name: 0015912520
Brand: Molex
SKU: 0015912520
Price: 2.60000 USD
Availability: InStock

new-10%

0015912520

Manufacturer part number:0015912520

Manufacturer:Molex

Description:0015912520 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015912520 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Packaging	Tube
Series	C-Grid 71308
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	52
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Total Number of Contacts	52
Orientation	Vertical
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Number of Circuits	50
Contact Finish Thickness - Mating	150.0μin 3.81μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015912520 Product Details

0015912520 Overview

You get it in Header, Breakaway packaging.Surface Mount is the mounting type.Packaging for the product is carried out via a Tube case.The product is part of the C-Grid 71308 Series.A possible application of the device would be Automotive, General Purpose, Lighting, Medical, Telecommunications.Mounting of the part is based on Surface Mount.It consists of 50 circuits.
