Name: 0015912180
Brand: Molex
SKU: 0015912180
Price: 2.32000 USD
Availability: InStock

new-10%

0015912180

Manufacturer part number:0015912180

Manufacturer:Molex

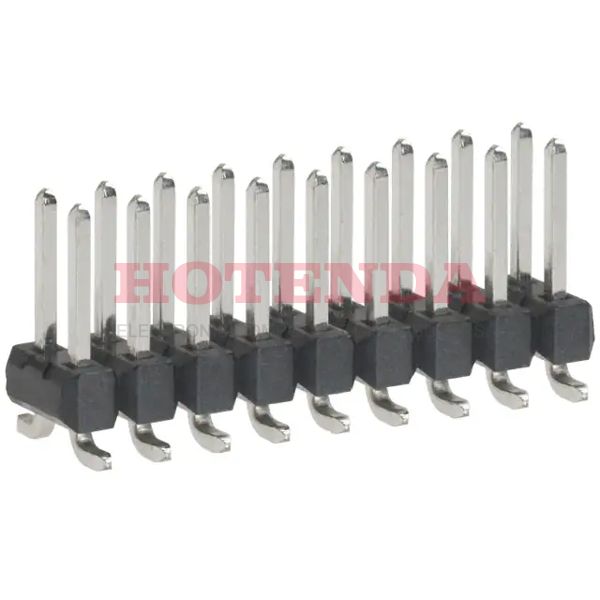

Description:C-Grid 71308 Series 2-Row Header, Breakaway Solder Copper Alloy Tube Surface Mount Tin Liquid Crystal Polymer (LCP), Glass Filled 18-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:0015912180 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Packaging	Tube
Series	C-Grid 71308
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	18
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Total Number of Contacts	18
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	150.0μin 3.81μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015912180 Product Details

0015912180 Overview

Packaging is in the form of Header, Breakaway.This device has a Surface Mount mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the C-Grid 71308 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Lighting, Medical, Telecommunications.
