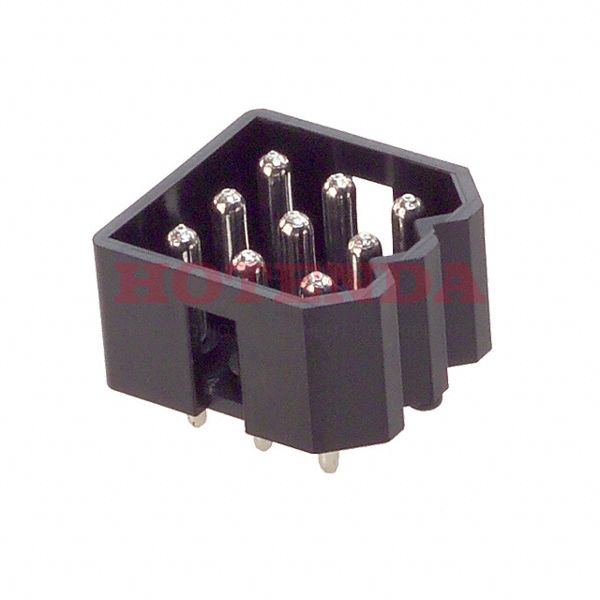

Name: 0010181090
Brand: Molex
SKU: 0010181090
Price: 3.96000 USD
Availability: InStock

new-10%

0010181090

Manufacturer part number:0010181090

Manufacturer:Molex

Description:0010181090 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0010181090 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Cartridge Brass
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polyester
Packaging	Bulk
Series	3099
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	9
Applications	General Purpose, Telecommunications
Number of Rows	3
Fastening Type	Latch Lock
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.421 10.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.198 5.03mm
Insulation Color	Black
Row Spacing - Mating	0.198 (5.03mm)
Contact Length - Post	0.170 4.32mm
Shrouding	Shrouded - 4 Wall
Empty Shell	NO
Contact Finish Thickness - Mating	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0010181090 Product Details

0010181090 Overview

A Header packaging is included.This device has a Through Hole mounting type.Packaging for the product is carried out via a Bulk case.This is from the 3099 Series.You can use it for General Purpose, Telecommunications.As a result of its Board Guide feature, it possesses a great deal of power.
