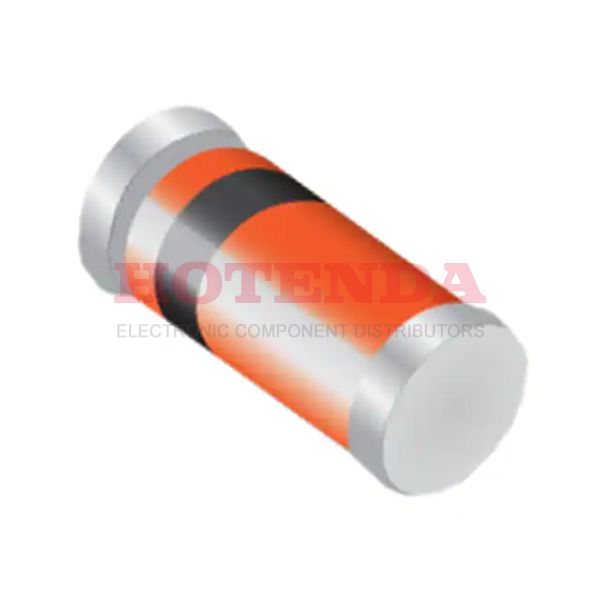

Name: CLL5227B TR
Brand: Central Semiconductor Corp
SKU: CLL5227B TR
Availability: InStock

new-10%

CLL5227B TR

Manufacturer part number:CLL5227B TR

Manufacturer:Central Semiconductor Corp

Description:ZENER DIODE 24Ohm ±5% 15μA @ 1V -65°C~200°C 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:CLL5227B TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Surface Mount	YES
Diode Element Material	SILICON
Operating Temperature	-65°C~200°C
Packaging	Cut Tape (CT)
Published	2010
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	INDUSTRY STANDARD
HTS Code	8541.10.00.50
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	10
JESD-30 Code	O-LELF-R2
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	0.5W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	15μA @ 1V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Case Connection	ISOLATED
Power - Max	500mW
Impedance-Max	24Ohm
Reference Voltage	3.6V
Voltage - Zener (Nom) (Vz)	3.6V
Voltage Tol-Max	5%
Working Test Current	20mA
Reverse Current-Max	15μA
Dynamic Impedance-Max	24Ohm
Knee Impedance-Max	1700Ohm
RoHS Status	RoHS Compliant

CLL5227B TR Product Details

CLL5227B TR Overview

This electrical device requires reverse leakage current of 15μA @ 1V.Tol is the maximum voltage that can be supplied (5%).The maximum voltage - Zener (Nom) is reduced to 3.6V during operation.Working test voltage should be set to 20mA for this device to operate.Zener single diode reaches 1.25V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
