Name: 1N5917B BK
Brand: Central Semiconductor Corp
SKU: 1N5917B BK
Availability: InStock

new-10%

1N5917B BK

Manufacturer part number:1N5917B BK

Manufacturer:Central Semiconductor Corp

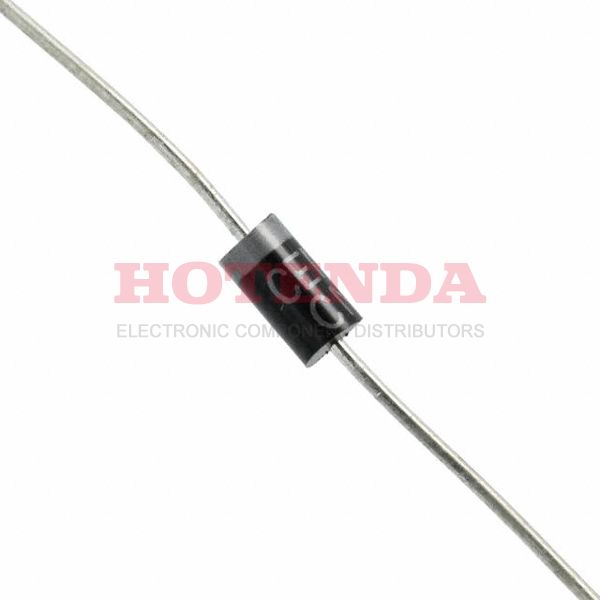

Description:ZENER DIODE 5Ohm ±5% 5μA @ 1.5V -65°C~200°C TJ 2 Terminations DO-204AL, DO-41, Axial

Case Package:SOT-23

Datasheet:1N5917B BK Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	26 Weeks
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Surface Mount	NO
Diode Element Material	SILICON
Operating Temperature	-65°C~200°C TJ
Packaging	Bulk
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN (315)
Additional Feature	INDUSTRY STANDARD
HTS Code	8541.10.00.50
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	10
JESD-30 Code	O-PALF-W2
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	1.5W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	5μA @ 1.5V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Case Connection	ISOLATED
Power - Max	1.5W
Impedance-Max	5Ohm
Reference Voltage	4.7V
Voltage - Zener (Nom) (Vz)	4.7V
Voltage Tol-Max	5%
Working Test Current	79.8mA
Dynamic Impedance-Max	5Ohm
RoHS Status	ROHS3 Compliant

1N5917B BK Product Details

1N5917B BK Overview

The reverse leakage current for this electrical device is 5μA @ 1.5V.Voltage (Tol) 5% is the maximum possible.In the course of operation, Zener (Nom) drops to zero voltage.This device should be operated with a 79.8mA working test voltage.This value reaches 1.5V @ 200mA when the maximum Forward voltage (Vf) is applied.
