Name: SDA01H1SBD
Brand: C&K
SKU: SDA01H1SBD
Price: 1.34000 USD
Availability: InStock

new-10%

SDA01H1SBD

Manufacturer part number:SDA01H1SBD

Manufacturer:C&K

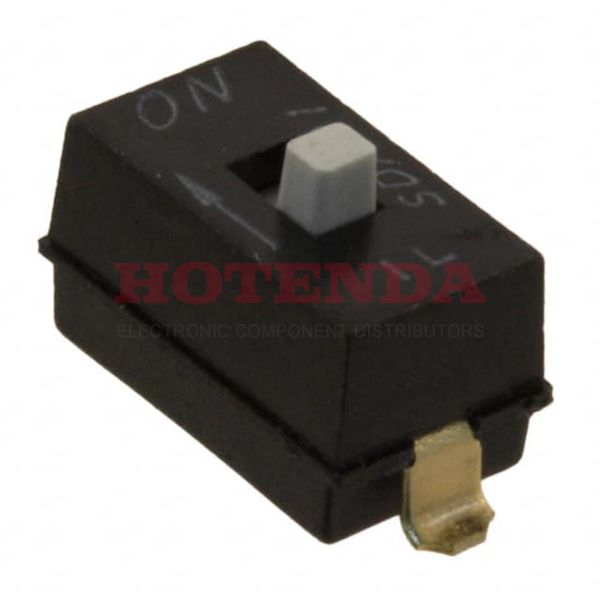

Description:SWITCH SLIDE DIP SPST 25MA 24V

Case Package:SOT-23

Datasheet:SDA01H1SBD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Contact Material	Beryllium Copper
Mount	Surface Mount
Mounting Type	Surface Mount
Body Material	Polyphenylene Sulfide (PPS)
Actuator Material	Polyamide
Operating Temperature	-40°C~85°C
Packaging	Tube
Published	2001
Series	SDA
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Gull Wing
Number of Positions	1
Voltage - Rated	24VDC
Voltage - Rated DC	24V
Pitch	0.100 2.54mm Full
Orientation	Straight
Current Rating	25mA
Contact Finish	Gold
Termination Style	Gull Wing
Actuator Type	Slide (Standard)
Circuit	SPST
Contact Resistance	50mOhm
Max Current Rating	100mA
Electrical Life	1,000 Cycles
Max Voltage Rating (DC)	24V
Mechanical Life	1,000 Cycles
Contact Current Rating	25mA
Washable	No
Actuator Level	Raised
Life (Cycles)	1000 cycles
Height	5.4356mm
Length	0.178 4.52mm
Actuator Length	1mm
Height Above Board	0.214 5.45mm
RoHS Status	ROHS3 Compliant

SDA01H1SBD Product Details

The C&K Components DIP Switches SDA01H1SBD are a reliable and cost-effective solution for a variety of applications. These switches feature a single-pole single-throw (SPST) design with a 25mA current rating and 24V voltage rating. The switches are designed to be mounted on a printed circuit board (PCB) and feature a slide actuator for easy operation. The switches are rated for up to 1 million cycles and are RoHS compliant. The SDA01H1SBD switches are ideal for applications requiring a reliable and cost-effective switch solution.
