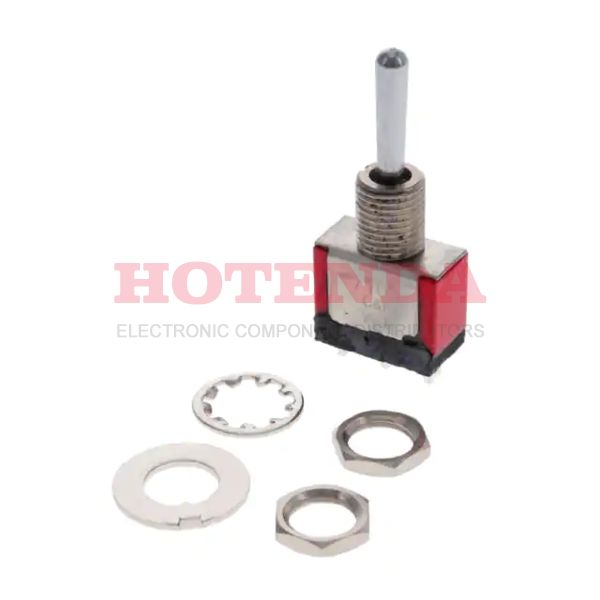

Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket and Threads
SOT-23
7101MDABE Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
14 Weeks
Contact Material
Gold
Mount
Brackets, Panel
Mounting Type
Panel Mount, Right Angle
Housing Material
Stainless Steel
Actuator Material
Brass, Chrome Plated
Operating Temperature
-30°C~85°C
Packaging
Bulk
Published
2012
Series
7000
Feature
Epoxy Sealed Terminals
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
PC Pins
Power Rating
400mW
Voltage - Rated DC
20V
Current Rating (Amps)
0.4VA AC/DC
Orientation
Right Angle
Depth
27.31mm
Termination Style
PC Pin
Voltage - Rated AC
20V
Actuator Type
Standard Round
Circuit
SPDT
Switch Function
On-On
Panel Cutout Dimensions
Circular - 6.35mm Dia
Max Voltage Rating (AC)
20V
Electrical Life
100,000 Cycles
Throw Configuration
SP, SPDT
Illumination
Non-Illuminated
Max Voltage Rating (DC)
20V
Illumination Type
Illuminated, Non-Illuminated
Bushing Thread
1/4-40
Length
12.7mm
Actuator Length
6.86mm
RoHS Status
ROHS3 Compliant
In-Stock:899 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$7.024396
$7.024396
10
$6.626789
$66.26789
100
$6.251688
$625.1688
500
$5.897819
$2948.9095
1000
$5.563980
$5563.98
7101MDABE Product Details
The C&K Components 7101MDABE Toggle Switch is a reliable and durable switch designed for a variety of applications. This switch features a single pole double throw (SPDT) round lever with PC pins, and is rated for 20VAC and 20VDC at 0.4VA. It is designed for PC mount with a bracket and threads for secure installation. The switch is designed to be in the "ON" position when none is selected, making it ideal for applications where the switch must remain in the "ON" position unless otherwise specified. The 7101MDABE is a reliable and durable switch that is perfect for a variety of applications.
