Name: HSMS-2815-TR1G
Brand: Broadcom Limited
SKU: HSMS-2815-TR1G
Availability: InStock

new-10%

HSMS-2815-TR1G

Manufacturer part number:HSMS-2815-TR1G

Manufacturer:Broadcom Limited

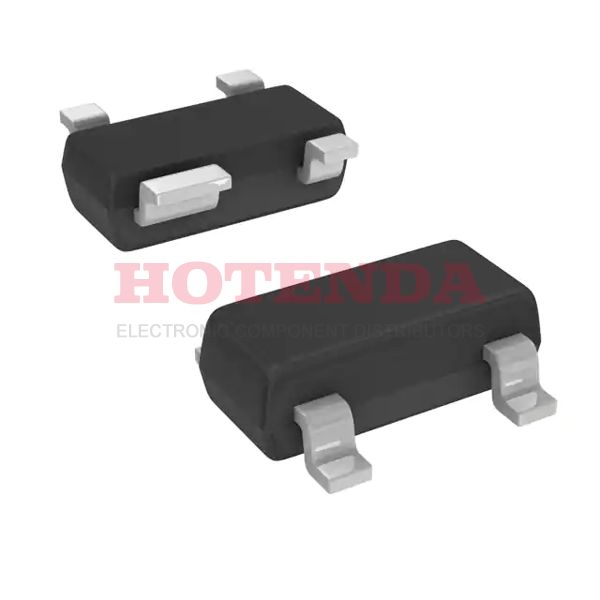

Description:Schottky - 2 Independent 1.2pF @ 0V 1MHz 150°C TJ 4 Terminations SILICON 260 Tape & Reel (TR) TO-253-4, TO-253AA

Case Package:SOT-23

Datasheet:HSMS-2815-TR1G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Package / Case	TO-253-4, TO-253AA
Number of Pins	4
Diode Element Material	SILICON
Operating Temperature	150°C TJ
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory	Other Diodes
Voltage - Rated DC	20V
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Current Rating	1A
Base Part Number	HSMS-2815
Number of Elements	2
Max Current Rating	1A
Element Configuration	Dual
Diode Type	Schottky - 2 Independent
Output Current	1A
Case Connection	CATHODE
Forward Current	1A
Max Reverse Leakage Current	200nA
Breakdown Voltage	20V
Forward Voltage	410mV
Max Repetitive Reverse Voltage (Vrrm)	20V
Capacitance @ Vr, F	1.2pF @ 0V 1MHz
Reverse Voltage (DC)	20V
Reverse Test Voltage	15V
Resistance @ If, F	15Ohm @ 5mA 1MHz
Diode Capacitance-Max	0.2pF
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

HSMS-2815-TR1G Product Details

HSMS-2815-TR1G Overview

A forward voltage higher than 410mV is recommended for systems.Diode is required that the reverse test voltage be wDiodehin 15V for a valid conversion result.Part rating is currently 1A.
