Name: HSMF-C114
Brand: Broadcom Limited
SKU: HSMF-C114
Price: 1.84000 USD
Availability: InStock

new-10%

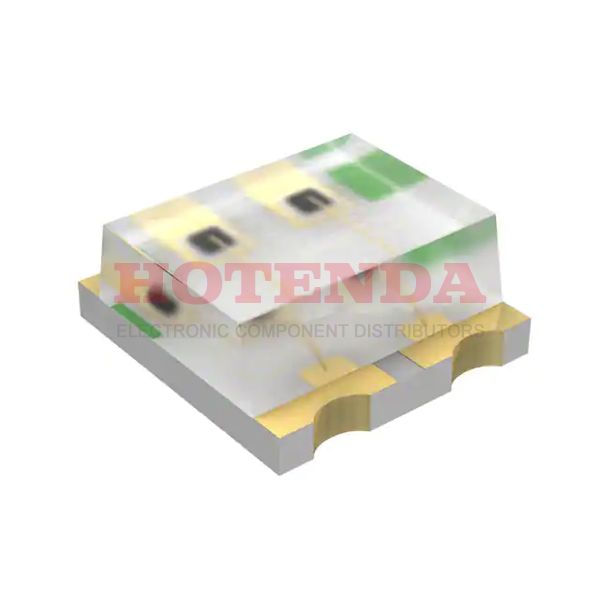

HSMF-C114

Manufacturer part number:HSMF-C114

Manufacturer:Broadcom Limited

Description:LED, SMD, RED/YEL-GRN/BLUE

Case Package:SOT-23

Datasheet:HSMF-C114 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0606 (1616 Metric)
Number of Pins	4
Shape	RECTANGULAR
Packaging	Tape & Reel (TR)
Published	2005
Size / Dimension	1.60mm Lx1.50mm W
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Number of Terminations	4
ECCN Code	EAR99
Terminal Finish	Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Red, Green, Blue (RGB)
Power Rating	78mW
Packing Method	TR, 7 INCH
Number of Functions	1
Depth	1.6mm
Base Part Number	HSMF-C11
Case Code (Metric)	1616
Case Code (Imperial)	0606
Number of Elements	3
Configuration	Common Anode
Voltage - Forward (Vf) (Typ)	1.9V Red 3.4V Green 3.4V Blue
Viewing Angle	140° Red, 145° Green, 145° Blue
Optoelectronic Device Type	TRIPLE COLOR LED
Forward Current	20mA
Current - Test	20mA Red 20mA Green 20mA Blue
Lens Style	Rectangle with Flat Top
Lens Size	1.10mmx1.50mm
Luminous Intensity	70 mcd
Millicandela Rating	85mcd Red, 180mcd Green, 70mcd Blue
Lens Transparency	Diffused
Wavelength - Peak	637nm Red 523nm Green 468nm Blue
Lens Color	White
Reverse Voltage	5V
Wavelength - Dominant	626nm Red 525nm Green 470nm Blue
Number of LEDs	3
Height	350μm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

HSMF-C114 Product Details

Description: The Broadcom LED Indication - Discrete HSMF-C114 is a surface mount device (SMD) LED indicator with a 0603 package size. It is available in three colors: red, yellow-green, and blue.

Features:
- 0603 package size
- Surface mount device (SMD)
- Available in three colors: red, yellow-green, and blue
- Low power consumption
- High brightness
- Long life

Applications: The Broadcom LED Indication - Discrete HSMF-C114 is suitable for a wide range of applications, including automotive, consumer electronics, industrial, and medical. It can be used as a status indicator, warning light, or decorative lighting.
