HLMP-4700-C0002 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
HLMP-4700-C0002 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
9 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2014
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Tin (Sn)
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Color
Red
Additional Feature
CMOS COMPATIBLE
Subcategory
Visible LEDs
Packing Method
TAPE AND REEL
Number of Functions
1
Depth
6.1mm
Base Part Number
HLMP-4700
Number of Elements
1
Configuration
Standard
Power Dissipation
14mW
Voltage - Forward (Vf) (Typ)
1.7V
Viewing Angle
50°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
7mA
Current - Test
2mA
Lens Style
Round with Domed Top
Lens Size
5mm T-1 3/4
Luminous Intensity
1.2 mcd
Millicandela Rating
2.3mcd
Lens Transparency
Diffused
Wavelength - Peak
635nm
Reverse Voltage
5V
Forward Voltage-Max
2V
Wavelength - Dominant
626nm
Diameter
5mm
Height
9.19mm
Length
6.1mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:10917 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.553683
$0.553683
10
$0.522343
$5.22343
100
$0.492776
$49.2776
500
$0.464883
$232.4415
1000
$0.438568
$438.568
HLMP-4700-C0002 Product Details

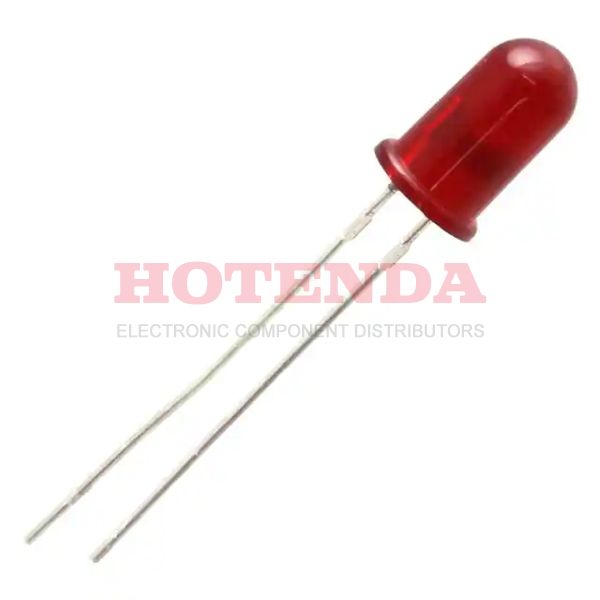

Description: The Broadcom LED Indication - Discrete HLMP-4700-C0002 is a 5mm LED with a red color and a luminous intensity of 2.3mcd at 626nm.
Features: - 5mm LED with a red color - Luminous intensity of 2.3mcd at 626nm - Low power consumption - Long life span
Applications: The Broadcom LED Indication - Discrete HLMP-4700-C0002 is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for backlighting, status indication, and decorative lighting.
