Name: HLMP-3301-D0002
Brand: Broadcom Limited
SKU: HLMP-3301-D0002
Price: 0.54000 USD
Availability: InStock

new-10%

HLMP-3301-D0002

Manufacturer part number:HLMP-3301-D0002

Manufacturer:Broadcom Limited

Description:HLMP-3301-D0002 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website

Case Package:SOT-23

Datasheet:HLMP-3301-D0002 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Number of Pins	2
Packaging	Tape & Reel (TR)
Published	2008
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Color	Red
Subcategory	Visible LEDs
Packing Method	TAPE AND REEL
Max Power Dissipation	85mW
Number of Functions	1
Depth	6.1mm
Base Part Number	HLMP-3301
Number of Elements	1
Configuration	Standard
Power Dissipation	85mW
Voltage - Forward (Vf) (Typ)	1.9V
Viewing Angle	60°
Optoelectronic Device Type	SINGLE COLOR LED
Forward Current	25mA
Current - Test	10mA
Lens Style	Round with Domed Top
Lens Size	5mm T-1 3/4
Luminous Intensity	2.1 mcd
Lens Transparency	Diffused
Wavelength - Peak	635nm
Reverse Voltage	5V
Wavelength - Dominant	626nm
Diameter	5mm
Height	9.19mm
Length	6.1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

HLMP-3301-D0002 Product Details

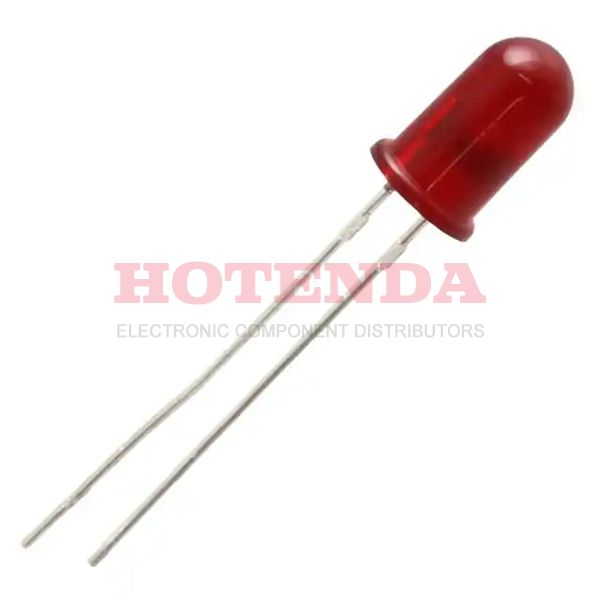

Description: The Broadcom LED Indication - Discrete HLMP-3301-D0002 is a red LED with a diffused T-1 3/4 package. It is a through-hole LED, meaning it is designed to be mounted on a printed circuit board (PCB) and soldered in place.

Features:
- Red LED with diffused lens
- Through-hole package
- T-1 3/4 size
- Low power consumption
- High reliability
- RoHS compliant

Applications: The Broadcom LED Indication - Discrete HLMP-3301-D0002 is suitable for a wide range of applications, including automotive, industrial, and consumer electronics. It can be used as a status indicator, warning light, or decorative lighting. It is also suitable for use in backlighting applications.
