HLMP-1700-B0002 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
9 Weeks
Contact Plating
Tin
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Number of Pins
2
Packaging
Tape & Reel (TR)
Published
2014
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Color
Red
Additional Feature
CMOS COMPATIBLE
Subcategory
Visible LEDs
Packing Method
TAPE AND REEL
Number of Functions
1
Depth
3.43mm
Base Part Number
HLMP-1700
Number of Elements
1
Configuration
Standard
Power Dissipation
14mW
Voltage - Forward (Vf) (Typ)
1.7V
Viewing Angle
50°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
7mA
Current - Test
2mA
Lens Style
Round with Domed Top
Lens Size
3mm T-1
Luminous Intensity
2.1 mcd
Lens Transparency
Diffused
Wavelength - Peak
635nm
Reverse Voltage
5V
Forward Voltage-Max
2V
Wavelength - Dominant
626nm
T-code
T-1
Diameter
3mm
Height
6.35mm
Length
3.43mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:12693 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.561000
$0.561
10
$0.529245
$5.29245
100
$0.499288
$49.9288
500
$0.471026
$235.513
1000
$0.444365
$444.365
HLMP-1700-B0002 Product Details

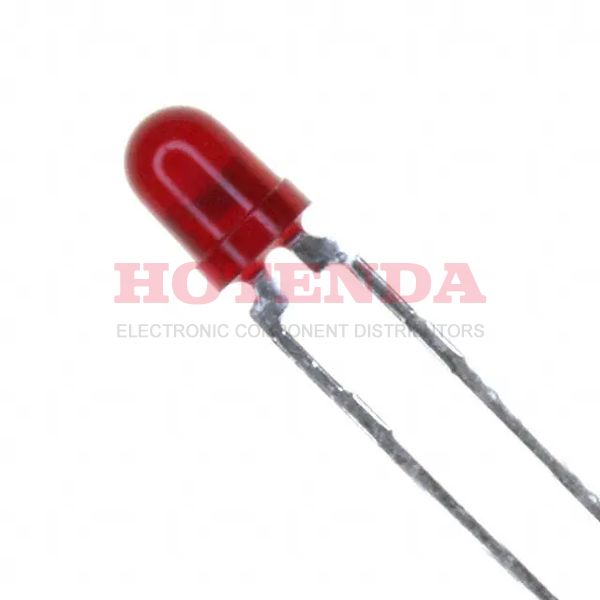

The Broadcom LED Indication - Discrete HLMP-1700-B0002 is a high-quality, reliable LED indicator designed for a variety of applications. This LED is a red, diffused T-1 T/H type, with a wide viewing angle and a long life expectancy. It is designed to be used in a variety of applications, including automotive, industrial, and consumer electronics. The LED is RoHS compliant and is UL recognized. It is also designed to be compatible with a wide range of voltage and current requirements. The LED is also designed to be highly efficient, with a low power consumption and a high luminous intensity. This LED is an ideal choice for applications that require a reliable, long-lasting, and efficient LED indicator.
