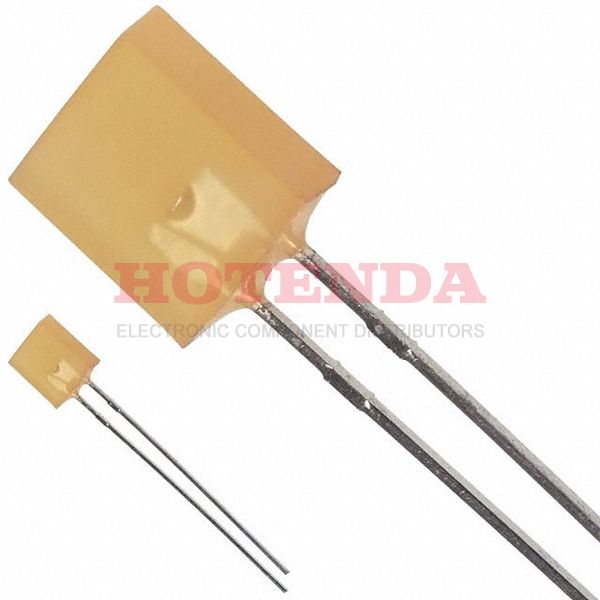

HLMP-0401 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
HLMP-0401 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
13 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Number of Pins
2
Shape
RECTANGULAR
Packaging
Bulk
Published
2008
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Matte Tin (Sn)
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Color
Yellow
Additional Feature
IC COMPATIBLE, HIGH RELIABILITY
Subcategory
Visible LEDs
Voltage - Rated DC
2.1V
Number of Functions
1
Depth
2.54mm
Current Rating
20mA
Base Part Number
HLMP-0401
Lead Length
29mm
Number of Elements
1
Configuration
Standard
Power Dissipation
85mW
Viewing Angle
100°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
7.31mmx2.35mm
Luminous Intensity
3.6 mcd
Lens Transparency
Diffused
Wavelength - Peak
583nm
Reverse Voltage
5V
Forward Voltage-Max
3V
Wavelength - Dominant
585nm
Height
8mm
Length
7.62mm
Width
2.5mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:16002 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
HLMP-0401 Product Details
Description:
The Broadcom LED Indication - Discrete HLMP-0401 is a yellow LED with a 2.5mm package size and a peak wavelength of 585nm. It has a low power consumption of 3.6mcd and is designed for use in a variety of applications.
Features:
- 2.5mm package size - Peak wavelength of 585nm - Low power consumption of 3.6mcd - High reliability and long life - RoHS compliant
Applications:
The Broadcom LED Indication - Discrete HLMP-0401 is suitable for a variety of applications, including automotive, industrial, medical, and consumer electronics. It can be used for backlighting, indicators, and displays.
