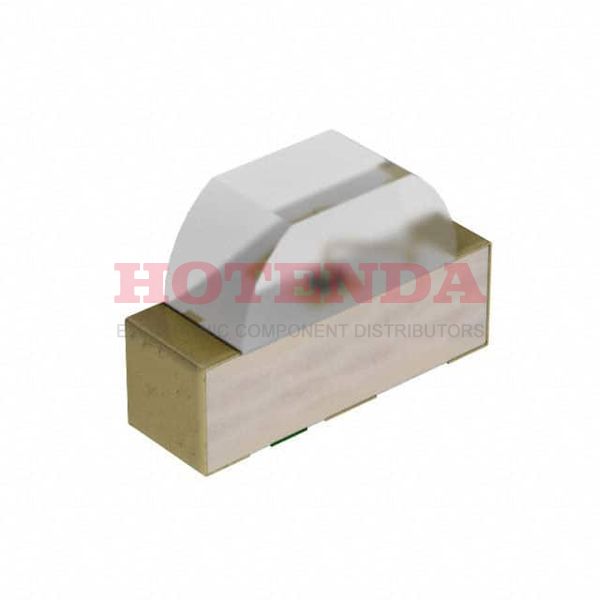

ASMT-CW00 datasheet pdf and LED Indication - Discrete product details from Broadcom Limited stock available on our website
SOT-23
ASMT-CW00 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
13 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount, Right Angle
Package / Case
2-SMD, No Lead
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2007
Size / Dimension
1.60mm Lx1.00mm W
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
White
Additional Feature
SUPPORTS INFRARED
Subcategory
Visible LEDs
Power Rating
32mW
Packing Method
TAPE AND REEL 7"
Max Power Dissipation
32mW
Number of Functions
1
Base Part Number
ASMT-C*00
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2.85V
Viewing Angle
150°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
5mA
Lens Style
Rectangle with Domed Top
Lens Size
1.20mmx0.50mm
Luminous Intensity
35 mcd
Millicandela Rating
35mcd
Lens Transparency
Clear
Lens Color
Colorless
Reverse Voltage
5V
Number of LEDs
1
Height
450μm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
In-Stock:10002 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.222475
$0.222475
10
$0.209882
$2.09882
100
$0.198002
$19.8002
500
$0.186794
$93.397
1000
$0.176221
$176.221
ASMT-CW00 Product Details
The Broadcom Limited ASMT-CW00 LED Indication is a discrete, surface-mount device designed to provide a bright, white light source for a variety of applications. This LED has a 1.2mm package size and requires only 5mA of current to operate at 3.15V, producing a luminous intensity of 35mcd. The ASMT-CW00 is ideal for use in backlighting, status indication, and decorative lighting applications. It is RoHS compliant and offers a long operating life of up to 100,000 hours. The ASMT-CW00 is a reliable and cost-effective solution for any lighting project.
