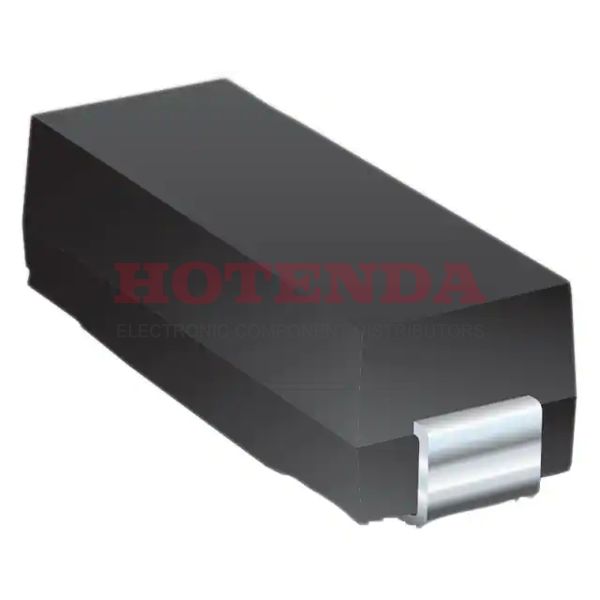

PWR4525W1R50F

new-10%

Manufacturer part number:PWR4525W1R50F

Manufacturer:Bourns Inc.

Description:RES SMD 1.5 OHM 1% 2W 4525

Case Package:SOT-23

Datasheet:PWR4525W1R50F Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Package / Case	4525 J-Lead
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Operating Temperature	-55°C~275°C
Packaging	Bulk
Published	2011
Series	PWR4525
Size / Dimension	0.449Lx0.252W 11.40mmx6.40mm
Tolerance	±1%
JESD-609 Code	e3
Feature	Current Sense, Moisture Resistant, Pulse Withstanding
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Temperature Coefficient	±50ppm/°C
Resistance	1.5Ohm
Terminal Finish	Matte Tin (Sn)
Composition	Wirewound
Max Power Dissipation	2W
Technology	WIRE WOUND
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Rated Power Dissipation (P)	2W
Working Voltage	173V
Height	5.0038mm
Height Seated (Max)	0.197 5.00mm
RoHS Status	ROHS3 Compliant
