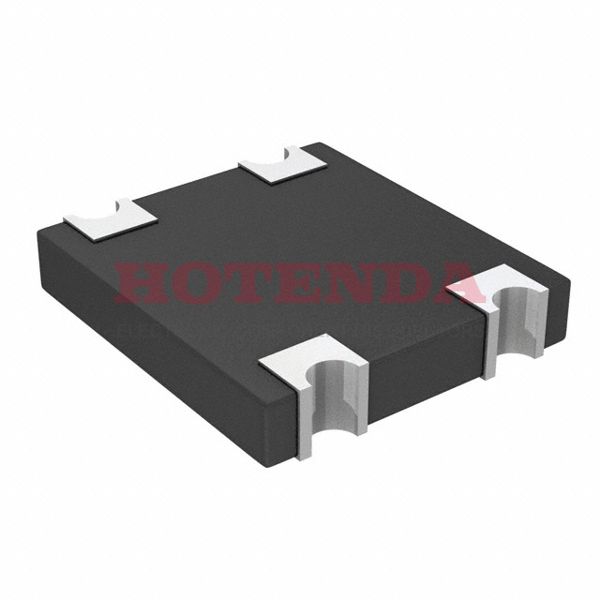

CD2320-B1400 Overview
There are no pins on rectifier.The base part number CD2320 can be used to identify a number of related parts.Basically, it's an electronic component that comes in a Chip, Concave Terminals package.Monitoring the reverse leakage current and not allowing it to exceed5μA is necessary.Surface Mount is the method of mounting the device.At -55°C~175°C TJ, the device operates normally.Ensure that surge current does not exceed 30A.The device is powered by a reverse voltage of 5μA.
CD2320-B1400 Features
4 pin count
Chip, Concave Terminals package
operating at a temperature of -55°C~175°C TJ
peak reverse voltage of 5μA
a reverse voltage peak of 5μA
CD2320-B1400 Applications
There are a lot of Bourns Inc. CD2320-B1400 applications of bridge rectifiers.
- Welding equipment
- SCR and diode based input rectifiers
- Fuse-in-glass diodes design
- High temperature and rectifiers
- Aviation – Standby power distribution, resistive heating
- Electroplating systems – Input SCRs and output rectifiers
- Power distribution – SCR based transformer tap changers
- Transportation – Traction rectifiers and auxiliary rectifiers
- Solid state SCR based switches
- Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
