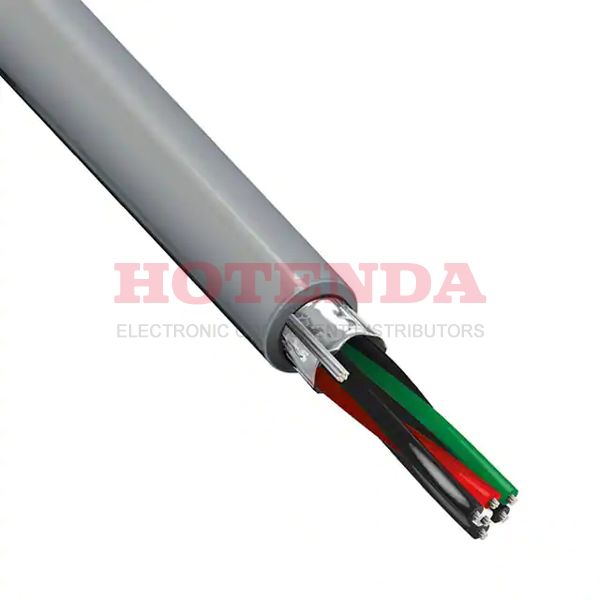

9503 060100

new-10%

Manufacturer part number:9503 060100

Manufacturer:Belden Inc.

Description:9503 060100 datasheet pdf and Multiple Conductor Cables product details from Belden Inc. stock available on our website

Case Package:SOT-23

Datasheet:9503 060100 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Insulation Material	POLYVINYL CHLORIDE
Conductor Material	Copper, Tinned
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Shield Material	Aluminum
Operating Temperature	-30°C~80°C
Packaging	Spool
Published	2011
Feature	Drain Wire
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Resistance	0.079Ohm
Shielding	NO
Construction	STRANDED
Number of Conductors	6 (3 Pair Twisted)
Approval Agency	UL
Wire Gauge	24 AWG
Connector Support Type	WIRE AND CABLE
Cable Type	Multi-Pair
Jacket Color	Chrome
Conductor Strand	7/32
Usage	Computer
Jacket (Insulation) Diameter	0.232 (5.89mm)
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Rated Current	1.76A
Shield Type	Foil
Shield Coverage	100%
Rated Voltage	300V
Stranding	7X32
Wire and Cable Name	FLEXIBLE CORD AND FIXTURE WIRE
Length	100.0' 30.5m
Jacket (Insulation) Thickness	0.0320 0.813mm
RoHS Status	ROHS3 Compliant
