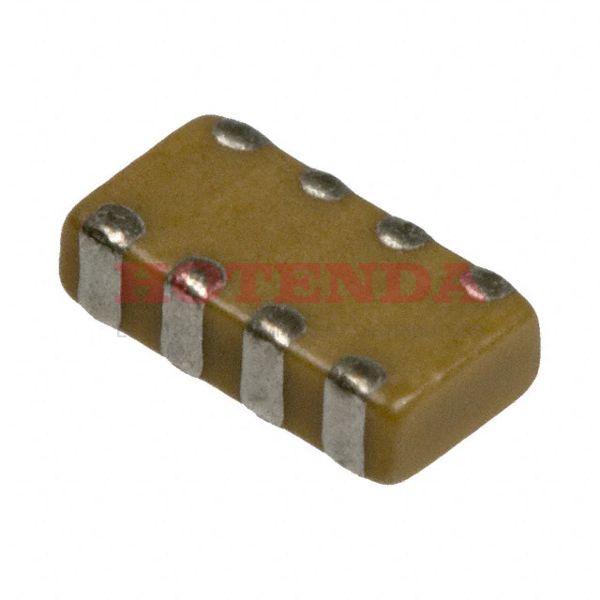

Name: W3A43A150KAT2A
Brand: AVX Corporation
SKU: W3A43A150KAT2A
Availability: InStock

new-10%

W3A43A150KAT2A

Manufacturer part number:W3A43A150KAT2A

Manufacturer:AVX Corporation

Description:W3A43A150KAT2A datasheet pdf and Capacitor Networks, Arrays product details from AVX Corporation stock available on our website

Case Package:SOT-23

Datasheet:W3A43A150KAT2A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0612 (1632 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Dielectric Material	Ceramic
Packaging	Tape & Reel (TR)
Published	2010
Series	IPC
Size / Dimension	0.063Lx0.126W 1.60mmx3.20mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Capacitance	15pF
Voltage - Rated DC	25V
Packing Method	TR, EMBOSSED/PAPER, 7 INCH
Number of Functions	4
Terminal Pitch	760μm
Capacitor Type	ARRAY/NETWORK CAPACITOR
Dielectric	C0G
Number of Elements	1
Temperature Characteristics Code	C0G
Circuit Type	Isolated
Number of Capacitors	4
Height	1.35mm
Height Seated (Max)	0.053 1.35mm
Width	1.6mm
RoHS Status	ROHS3 Compliant

W3A43A150KAT2A Product Details

W3A43A150KAT2A Overview

Seating height reaches 0.053 1.35mm.0.063Lx0.126W 1.60mmx3.20mm is the size/dimension of the object.Having a coefficient of C0G NP0, it is at room temperature.There are no cases included with the product.This part has a 760μm pitch at the terminals.Rated DC is 25V for this electrical part.

W3A43A150KAT2A Features

the maximal height is 0.053 1.35mm
with the size / dimension of 0.063Lx0.126W 1.60mmx3.20mm
A temperature coefficient of C0G NP0
a 760μm terminal pitch
