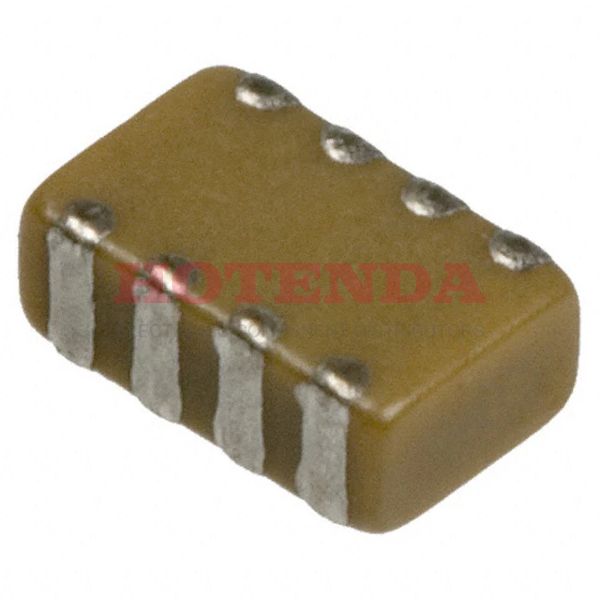

Name: W2A45A680KAT2A
Brand: AVX Corporation
SKU: W2A45A680KAT2A
Availability: InStock

new-10%

W2A45A680KAT2A

Manufacturer part number:W2A45A680KAT2A

Manufacturer:AVX Corporation

Description:W2A45A680KAT2A datasheet pdf and Capacitor Networks, Arrays product details from AVX Corporation stock available on our website

Case Package:SOT-23

Datasheet:W2A45A680KAT2A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0508 (1220 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Dielectric Material	Ceramic
Packaging	Tape & Reel (TR)
Published	2006
Series	IPC
Size / Dimension	0.051Lx0.083W 1.30mmx2.10mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Capacitance	68pF
Voltage - Rated DC	50V
Packing Method	TR, EMBOSSED/PAPER, 7 INCH
Number of Functions	4
Terminal Pitch	500μm
Capacitor Type	ARRAY/NETWORK CAPACITOR
Dielectric	C0G
Number of Elements	1
Temperature Characteristics Code	C0G
Circuit Type	Isolated
Number of Capacitors	4
Height	940μm
Height Seated (Max)	0.037 0.95mm
Width	1.3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

W2A45A680KAT2A Product Details

W2A45A680KAT2A Overview

Seating height reaches 0.037 0.95mm.Size/dimension is set to 0.051Lx0.083W 1.30mmx2.10mm.C0G NP0 is the temperature coefficient.It is packaged in a 0508 (1220 Metric) case.This part has a terminal pitch of 500μm.The voltage rated for this electrical part is 50V.

W2A45A680KAT2A Features

the maximal height is 0.037 0.95mm
with the size / dimension of 0.051Lx0.083W 1.30mmx2.10mm
A temperature coefficient of C0G NP0
a 500μm terminal pitch
