SR215C683KAA

  • SR215C683KAA
  • SR215C683KAA

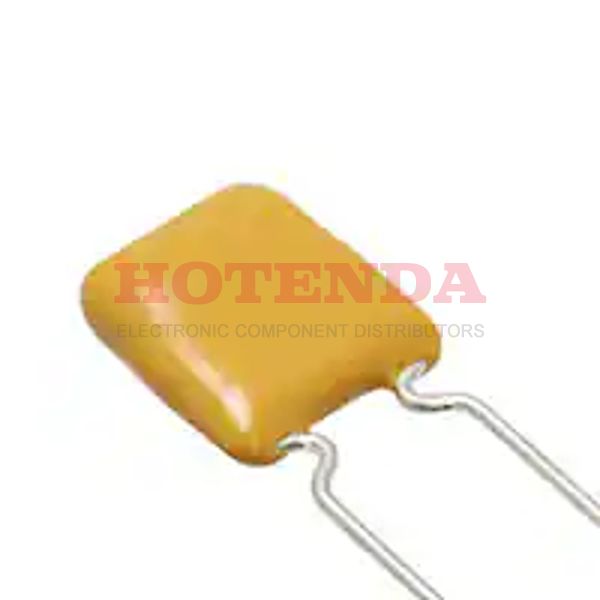

SR215C683KAA

SR215C683KAA

AVX Corporation

SR215C683KAA datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

SR215C683KAA Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 11 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric Material CERAMIC
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series SkyCap® SR
Size / Dimension 0.200Lx0.125W 5.08mmx3.18mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
HTS Code 8532.24.00.60
Capacitance 0.068μF
Voltage - Rated DC 50V
Lead Pitch 5.08mm
Capacitor Type CERAMIC CAPACITOR
Lead Spacing 0.200 5.08mm
Temperature Characteristics Code X7R
Multilayer Yes
Lead Diameter 508 μm
Size Code 2012
Lead Style Formed Leads - Kinked
Lead/Base Style Kinked
Height 5.08mm
Height Seated (Max) 0.300 7.62mm
Width 3.175mm
Thickness 3.17mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
SR215C683KAA Product Details

SR215C683KAA Overview


Ceramic capacitor is 0.200Lx0.125W 5.08mmx3.18mm in size/dimension for this device.This coefficient equals X7R indicates that a substance's electrical resistance changes with temperature per degree change.Powered by voltage of 50V, it can be operated with a voltage of rated DC.Lead pitch of a capacitor is simply the distance (spacing) between adjacent threads, and its pitch is 5.08mm.

SR215C683KAA Features


a size/dimension of 0.200Lx0.125W 5.08mmx3.18mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 50V

SR215C683KAA Applications


There are a lot of AVX Corporation SR215C683KAA applications of ceramic capacitors.

  • Servers, PCs, tablets
  • Power supply circuit
  • Mobile devices
  • General electronic equipment
