CB182G0105KBC

  • CB182G0105KBC - CB 1μF Film Capacitor ±10% 6054 (153137 Metric) Solder Pads 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Surface Mount
  • CB182G0105KBC - CB 1μF Film Capacitor ±10% 6054 (153137 Metric) Solder Pads 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Surface Mount

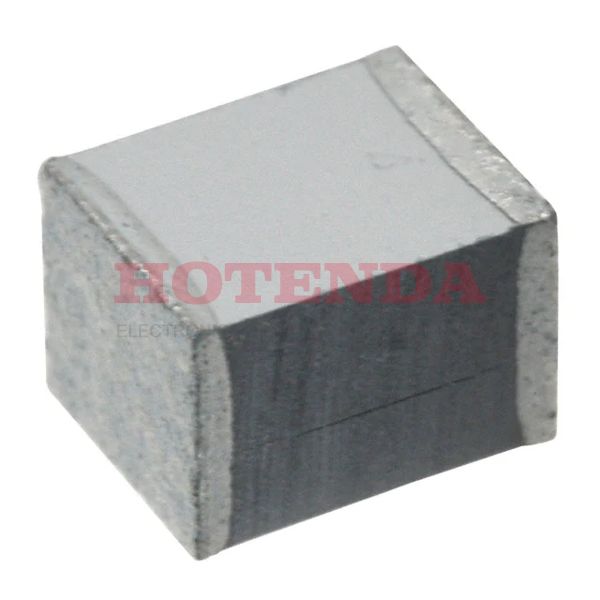

CB182G0105KBC

CB182G0105KBC

AVX Corporation

CB 1μF Film Capacitor ±10% 6054 (153137 Metric) Solder Pads 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Surface Mount

SOT-23

CB182G0105KBC Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Contact PlatingTin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6054 (153137 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2007
Series CB
Size / Dimension 0.602Lx0.539W 15.30mmx13.70mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Applications General Purpose
Additional FeatureAC RATED VOLTAGE(V):160
Capacitance 1μF
Voltage - Rated DC 250V
Packing Method TR, 13 INCH
Depth 13.7mm
Voltage - Rated AC 160V
Capacitor Type FILM CAPACITOR
Dielectric PET
Height 6mm
Height Seated (Max) 0.236 6.00mm
Length 15.3mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:1962 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.841188$3.841188
10$3.623762$36.23762
100$3.418643$341.8643
500$3.225135$1612.5675
1000$3.042581$3042.581

CB182G0105KBC Product Details

CB182G0105KBC Overview


Temperatures of -55°C~125°C allow the device to operate.

CB182G0105KBC Features



CB182G0105KBC Applications


There are a lot of AVX Corporation CB182G0105KBC applications of film capacitors.

  • Audio/video equipment
  • Filters
  • Global positioning systems
  • Matching networks
  • VCO's
  • Electronic ballasts
  • Mobile communications
  • IGBT
  • Test and measuring equipment
  • Lighting
