CB037G0153KBA

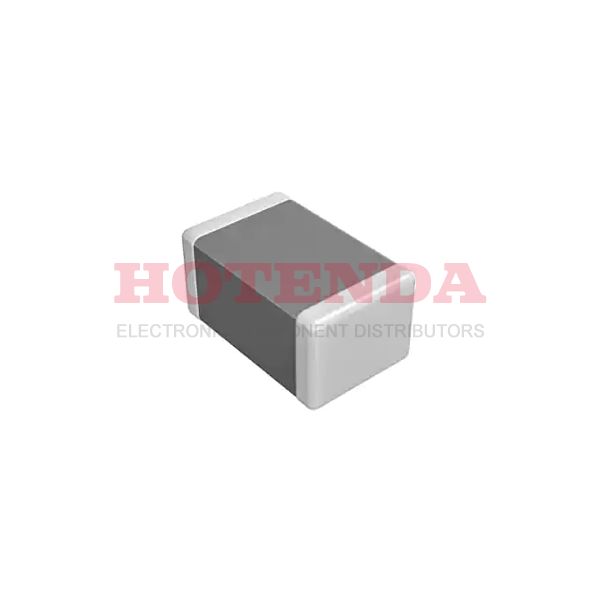

  • CB037G0153KBA - 15nF Film Capacitor 10% 1812 SMD/SMT 160V-DC POLYETHYLENE NAPHTHALATE Surface Mount
  • CB037G0153KBA - 15nF Film Capacitor 10% 1812 SMD/SMT 160V-DC POLYETHYLENE NAPHTHALATE Surface Mount

CB037G0153KBA

CB037G0153KBA

AVX Corporation

15nF Film Capacitor 10% 1812 SMD/SMT 160V-DC POLYETHYLENE NAPHTHALATE Surface Mount

SOT-23

CB037G0153KBA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Mount Surface Mount
Package / Case 1812
Terminal Shape WRAPAROUND
Dielectric MaterialPOLYETHYLENE NAPHTHALATE
PackagingTape & Reel (TR)
Published 2015
Tolerance 10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature125°C
Min Operating Temperature -55°C
Additional FeatureRATED AC VOLTAGE (V): 160
HTS Code8532.25.00.45
Capacitance 15nF
Voltage - Rated DC 160V
Packing Method TR, 7 INCH
Depth 3.2mm
Capacitor Type FILM CAPACITOR
Rated (DC) Voltage (URdc) 250V
Height 2.4mm
Length 4.7mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:6214 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.121008$1.121008
10$1.057555$10.57555
100$0.997693$99.7693
500$0.941220$470.61
1000$0.887943$887.943

CB037G0153KBA Product Details

CB037G0153KBA Overview


It is essential that systems function with a rated (DC) voltage (URdc) of 250V.

CB037G0153KBA Features


a rated (DC) voltage (URdc) of 250V

CB037G0153KBA Applications


There are a lot of AVX Corporation CB037G0153KBA applications of film capacitors.

  • Global positioning systems
  • RF Modules
  • IGBT
  • Filtering
  • RFI for automotive
  • Electronic ballasts
  • VCO's
  • Blocking
  • TV and monitor sets
  • Coupling, decoupling
