BF054D0155JDA

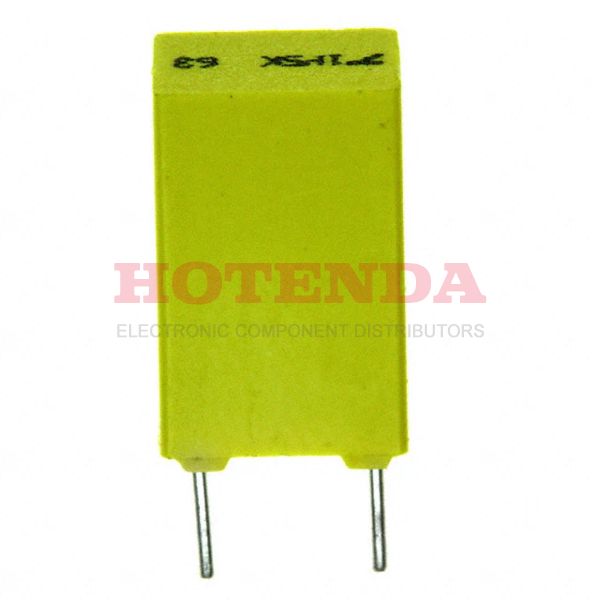

  • BF054D0155JDA - BF 1.5μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Metallized Through Hole
  • BF054D0155JDA - BF 1.5μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Metallized Through Hole

BF054D0155JDA

BF054D0155JDA

AVX Corporation

BF 1.5μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Metallized Through Hole

SOT-23

BF054D0155JDA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~100°C
PackagingTape & Box (TB)
Published 2005
Series BF
Size / Dimension 0.295Lx0.236W 7.50mmx6.00mm
Tolerance ±5%
JESD-609 Code e0
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 40
HTS Code8532.25.00.70
Capacitance 1.5μF
Voltage - Rated DC 63V
Packing Method AMMO PACK
Reach Compliance Code not_compliant
Voltage - Rated AC 40V
Lead Pitch 5.08mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.200 5.08mm
Size Code 3024
Custom Capabilities Other Tolerance Value On Request
Height Seated (Max) 0.472 12.00mm
Length 7.5mm
Width 6mm
RoHS StatusNon-RoHS Compliant
In-Stock:2657 items

BF054D0155JDA Product Details

BF054D0155JDA Overview


Electrical devices such as this have a lead spacing of 0.200 5.08mm.-55°C~100°C is the maximum temperature at which the device can operate.

BF054D0155JDA Features



BF054D0155JDA Applications


There are a lot of AVX Corporation BF054D0155JDA applications of film capacitors.

  • Lighting
  • Audio/video equipment
  • Filters
  • Test and measuring equipment
  • Bypassing
  • VCO's
  • Battery management system
  • Switch mode power supplies
  • Satellite TV
  • Coupling, decoupling
