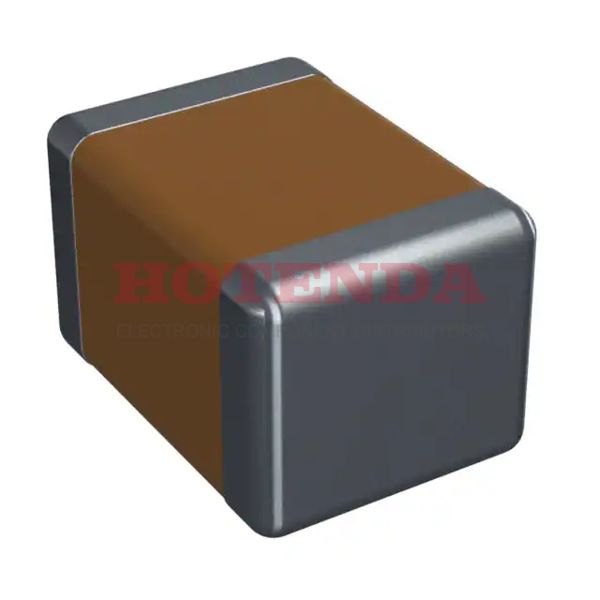

Name: 1812HC681KAT1A
Brand: AVX Corporation
SKU: 1812HC681KAT1A
Price: 1.28000 USD
Availability: InStock

new-10%

1812HC681KAT1A

Manufacturer part number:1812HC681KAT1A

Manufacturer:AVX Corporation

Description:1812HC681KAT1A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

Case Package:SOT-23

Datasheet:1812HC681KAT1A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2010
Size / Dimension	0.181Lx0.126W 4.60mmx3.20mm
Tolerance	±10%
JESD-609 Code	e3
Feature	High Voltage
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Capacitance	680pF
Voltage - Rated DC	3kV
Packing Method	TR, 7 Inch
Depth	3.2mm
Case Code (Metric)	4532
Case Code (Imperial)	1812
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	3000V
Height	2.54mm
Length	4.6mm
Thickness (Max)	0.087 2.20mm
Thickness	2.54mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

1812HC681KAT1A Product Details

1812HC681KAT1A Overview

The size/dimension of the program on this device is 0.181Lx0.126W 4.60mmx3.20mm.This coefficient is determined by the change in electrical resistance of a substance as a function of temperature; in general, its coefficient is X7R.The unit can operate at 3kV Volts DC - Rated DC.
