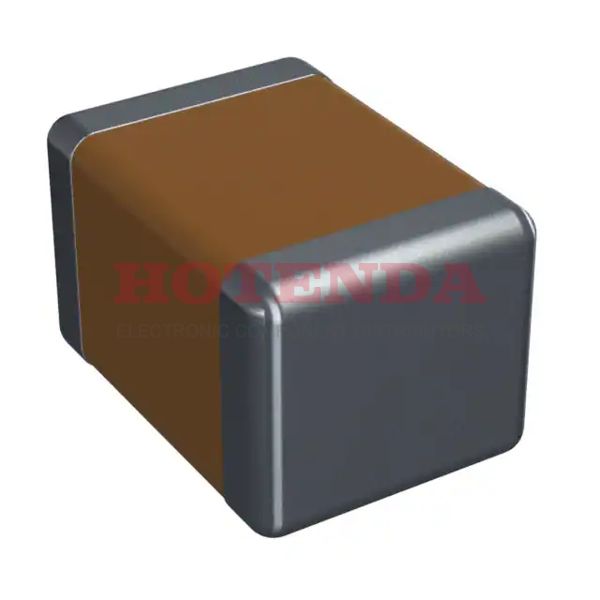

1812AC103MAT1A

1812AC103MAT1A

AVX Corporation

1812AC103MAT1A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

1812AC103MAT1A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material CERAMIC
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Size / Dimension 0.181Lx0.126W 4.60mmx3.20mm
Tolerance ±20%
JESD-609 Code e3
Feature High Voltage
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 10000pF
Voltage - Rated DC 1kV
Packing Method TR, 7 Inch
Depth 3.2mm
Case Code (Metric) 4532
Case Code (Imperial) 1812
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Rated (DC) Voltage (URdc) 1000V
Height 2.54mm
Length 4.6mm
Thickness (Max) 0.087 2.20mm
Thickness 2.54mm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.41000 $0.41
500 $0.4059 $202.95
1000 $0.4018 $401.8
1500 $0.3977 $596.55
2000 $0.3936 $787.2
2500 $0.3895 $973.75
1812AC103MAT1A Product Details

1812AC103MAT1A Overview


In the case of this device, the size/dimension of the program is 0.181Lx0.126W 4.60mmx3.20mm.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.The unit can operate at 1kV Volts DC - Rated DC.

1812AC103MAT1A Features


a size/dimension of 0.181Lx0.126W 4.60mmx3.20mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 1kV

1812AC103MAT1A Applications


There are a lot of AVX Corporation 1812AC103MAT1A applications of ceramic capacitors.

  • Power supply circuit
  • Mobile devices
  • General electronic equipment
  • Servers, PCs, tablets
