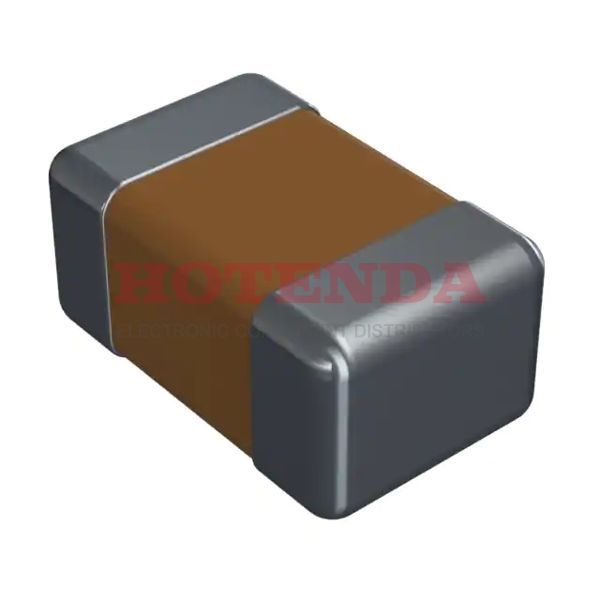

08055C682MAT2A

08055C682MAT2A

AVX Corporation

08055C682MAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

08055C682MAT2A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 12 Weeks
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material CERAMIC
Weight 5.499807mg
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 0.079Lx0.049W 2.01mmx1.25mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X7R
Applications General Purpose
Capacitance 6800pF
Voltage - Rated DC 50V
Packing Method TR, PAPER, 7 INCH
Depth 1.25mm
Case Code (Metric) 2012
Case Code (Imperial) 0805
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X7R
Multilayer Yes
Height 940μm
Thickness (Max) 0.037 0.94mm
Thickness 939.8μm
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
08055C682MAT2A Product Details

08055C682MAT2A Overview


Using this device, the program has a size/dimension of 0.079Lx0.049W 2.01mmx1.25mm.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.The unit can operate at 50V Volts DC - Rated DC.

08055C682MAT2A Features


a size/dimension of 0.079Lx0.049W 2.01mmx1.25mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 50V

08055C682MAT2A Applications


There are a lot of AVX Corporation 08055C682MAT2A applications of ceramic capacitors.

  • General electronic equipment
  • Mobile devices
  • Servers, PCs, tablets
  • Power supply circuit
