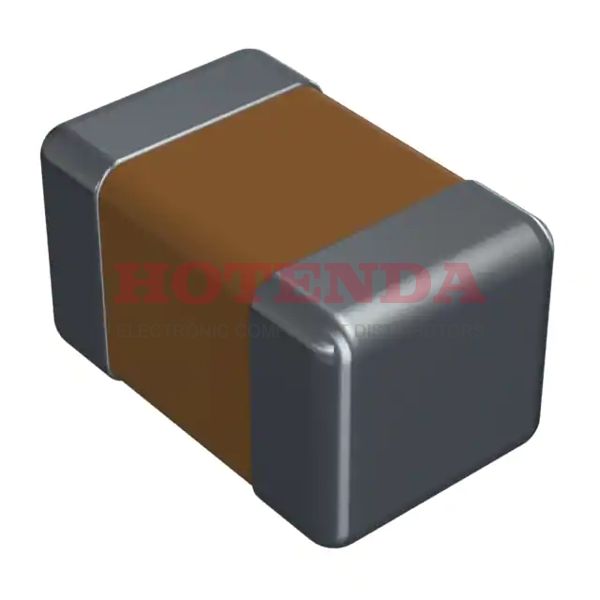

Name: 08052U3R3BAT2A
Brand: AVX Corporation
SKU: 08052U3R3BAT2A
Price: 0.52000 USD
Availability: InStock

new-10%

08052U3R3BAT2A

Manufacturer part number:08052U3R3BAT2A

Manufacturer:AVX Corporation

Description:08052U3R3BAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

Case Package:SOT-23

Datasheet:08052U3R3BAT2A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0805 (2012 Metric)
Number of Pins	2
Dielectric Material	Ceramic
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	U
Size / Dimension	0.079Lx0.049W 2.01mmx1.25mm
Tolerance	±0.1pF
JESD-609 Code	e3
Feature	Ultra Low ESR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency
Additional Feature	REFERENCE STANDARD: MIL-C-55681
Capacitance	3.3pF
Voltage - Rated DC	200V
Packing Method	TR, 7 INCH
Depth	1.25mm
Voltage - Rated AC	200V
Case Code (Metric)	2012
Case Code (Imperial)	0805
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Voltage	200V
Height	1.02mm
Thickness (Max)	0.045 1.15mm
Thickness	1.143mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

08052U3R3BAT2A Product Details

08052U3R3BAT2A Overview

Using this device, the program has a size/dimension of 0.079Lx0.049W 2.01mmx1.25mm.Additionally, this ceramic capacitor is characterized by a REFERENCE STANDARD: MIL-C-55681.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.Ceramic capacitor is able to operate wCeramic capacitorh the voltage - Rated DC of 200V.
