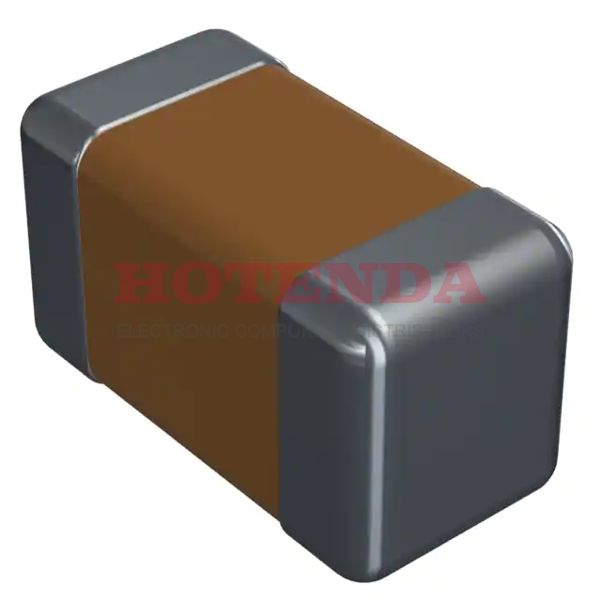

0603YA1R8BAT2A

0603YA1R8BAT2A

AVX Corporation

0603YA1R8BAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

0603YA1R8BAT2A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Weight 2.012816mg
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Size / Dimension 0.063Lx0.032W 1.60mmx0.81mm
Tolerance ±0.1pF
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
HTS Code 8532.24.00.20
Capacitance 1.8pF
Voltage - Rated DC 16V
Packing Method TR, PAPER, 7 INCH
Case Code (Metric) 1608
Case Code (Imperial) 0603
Capacitor Type CERAMIC CAPACITOR
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Length 1.6mm
Width 0.81mm
Thickness (Max) 0.035 0.90mm
Thickness 889μm
RoHS Status ROHS3 Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
0603YA1R8BAT2A Product Details

0603YA1R8BAT2A Overview


In the case of this device, the size/dimension of the program is 0.063Lx0.032W 1.60mmx0.81mm.A substance's temperature coefficient of resistance is generally defined as how its electrical resistance changes with per degree change in temperature.This device can operate on voltage - Rated DC of 16V.

0603YA1R8BAT2A Features


a size/dimension of 0.063Lx0.032W 1.60mmx0.81mm
with C0G NP0 being the highest temperature coefficient
with the voltage - Rated DC of 16V

0603YA1R8BAT2A Applications


There are a lot of AVX Corporation 0603YA1R8BAT2A applications of ceramic capacitors.

  • Servers, PCs, tablets
  • Power supply circuit
  • Mobile devices
  • General electronic equipment
