Name: 0402ZD105MAT2A
Brand: AVX Corporation
SKU: 0402ZD105MAT2A
Price: 0.28000 USD
Availability: InStock

new-10%

0402ZD105MAT2A

Manufacturer part number:0402ZD105MAT2A

Manufacturer:AVX Corporation

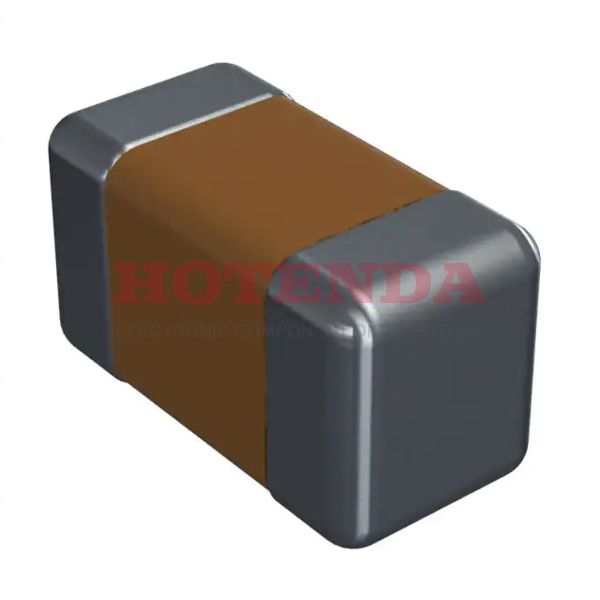

Description:1μF Ceramic Capacitor ±20% X5R 0.039Lx0.020W 1.00mmx0.50mm -55°C~85°C 2 Terminations Surface Mount, MLCC 0402 (1005 Metric)

Case Package:SOT-23

Datasheet:0402ZD105MAT2A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Dielectric Material	CERAMIC
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Published	2001
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	X5R
Applications	General Purpose
Capacitance	1μF
Voltage - Rated DC	10V
Packing Method	TR, Paper, 7 Inch
Depth	500μm
Case Code (Metric)	1005
Case Code (Imperial)	0402
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X5R
Multilayer	Yes
Height	560μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.56mm
Thickness	558.8μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

0402ZD105MAT2A Product Details

0402ZD105MAT2A Overview

Programs on this device are of 0.039Lx0.020W 1.00mmx0.50mm size/dimension.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with X5R being the highest temperature coefficient.The unit can operate at 10V Volts DC - Rated DC.
