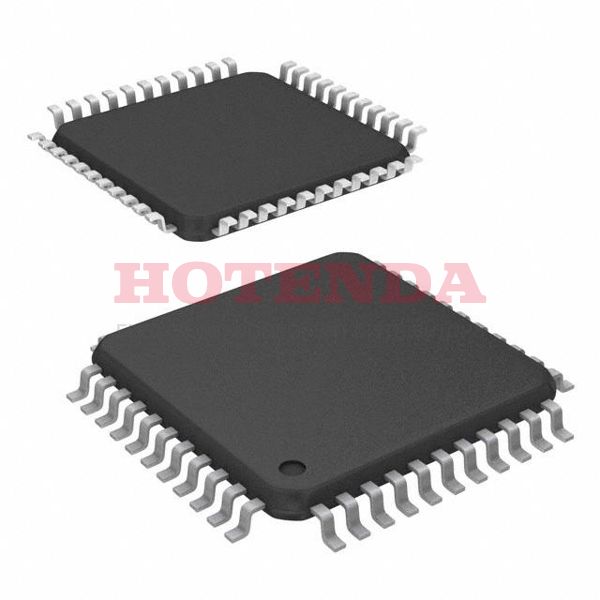

Name: AT89LS8252-12AI
Brand: Atmel (Microchip Technology)
SKU: AT89LS8252-12AI
Availability: InStock

new-10%

AT89LS8252-12AI

Manufacturer part number:AT89LS8252-12AI

Manufacturer:Atmel (Microchip Technology)

Description:Microcontroller 44 Pin 12MHz 3V TQFP

Case Package:SOT-23

Datasheet:AT89LS8252-12AI Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Package / Case	TQFP
Number of Pins	44
JESD-609 Code	e0
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Tin/Lead (Sn/Pb)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Supply Voltage	3V
Terminal Pitch	0.8mm
Frequency	12MHz
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	44
Qualification Status	Not Qualified
Temperature Grade	INDUSTRIAL
Interface	SPI, UART
Max Supply Voltage	6V
Min Supply Voltage	2.7V
Memory Size	8kB
Number of I/O	32
RAM Size	256B
Memory Type	FLASH
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Supply Current-Max	25mA
Bit Size	8
Frequency (Max)	12MHz
Access Time	12 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	3
Address Bus Width	16
ROM (words)	8192
Core Architecture	8051
Number of Programmable I/O	32
RAM (bytes)	256
Length	10mm
Height Seated (Max)	1.2mm
RoHS Status	RoHS Compliant
Lead Free	Contains Lead

AT89LS8252-12AI Product Details

AT89LS8252-12AI Overview

In a TQFP package, the MCU is available. 32 I/Os are available. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 44 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 3V volt supply output on the chip. DMA channels number NO. 8kB is the memory size of the part. The efficiency of this device can be improved when operating at a frequency of 12MHz. The device works in NO PWM channels. Located on the chip are 44 pins. The clock has 3 timers or counters on it. There are 44 pins on it. It has built-in FLASH memory. There is an integrated 8051 core architecture in it. It programs in 32 Programmable I/O.
