Name: 3631NF/2
Brand: APEM Inc.
SKU: 3631NF/2
Price: 27.60000 USD
Availability: InStock

new

3631NF/2

Manufacturer part number:3631NF/2

Manufacturer:APEM Inc.

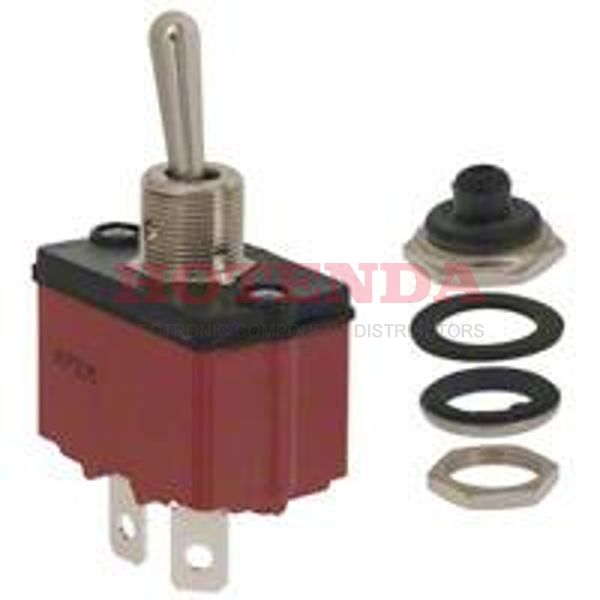

Description:APEM 3631NF/2 Toggle Switch, 3600NF Series, Non Illuminated, SPST, Off-On, Panel, 12 A

Case Package:SOT-23

Datasheet:3631NF/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Silver
Mount	Panel
Mounting Type	Panel Mount
Number of Pins	1
Housing Material	Phenolic
Actuator Material	Brass, Nickel Plated
Operating Temperature	-40°C~85°C
Packaging	Bulk
Series	3600NF
Feature	Sealed
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Quick Connect
ECCN Code	EAR99
HTS Code	8536.50.90.65
Voltage - Rated DC	28V
Current Rating (Amps)	6A AC 12A DC
Orientation	Straight
Current Rating	12A
Termination Style	Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC	250V
Actuator Type	Standard Round
Circuit	SPST
Switch Function	On-Off
Panel Cutout Dimensions	Circular - 12.20mm Dia
Contact Resistance	10mOhm
Insulation Resistance	1GOhm
Max Voltage Rating (AC)	250V
Electrical Life	10,000 Cycles
Illumination	Non-Illuminated
Max Voltage Rating (DC)	28V
Switch Type	TOGGLE SWITCH
Contact Current Rating	12A
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	M12 x 0.75
Switching Current	6A
Height	35mm
Width	21.5mm
Actuator Length	17.50mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

3631NF/2 Product Details

Description: The APEM 3631NF/2 Toggle Switch is a non-illuminated, single-pole, single-throw (SPST) switch designed for panel mounting. It has an Off-On function and is rated for 12 A at 125 VAC. It has solder lug termination for easy installation.

Features:
• Non-illuminated
• SPST Off-On function
• Panel mount
• 12 A, 125 VAC rating
• Solder lug termination

Applications: The APEM 3631NF/2 Toggle Switch is suitable for a wide range of applications, including industrial control, automotive, and consumer electronics. It can be used to control the power supply to electrical devices, such as motors, pumps, and lights. It can also be used to control the flow of air or liquid in a system.
