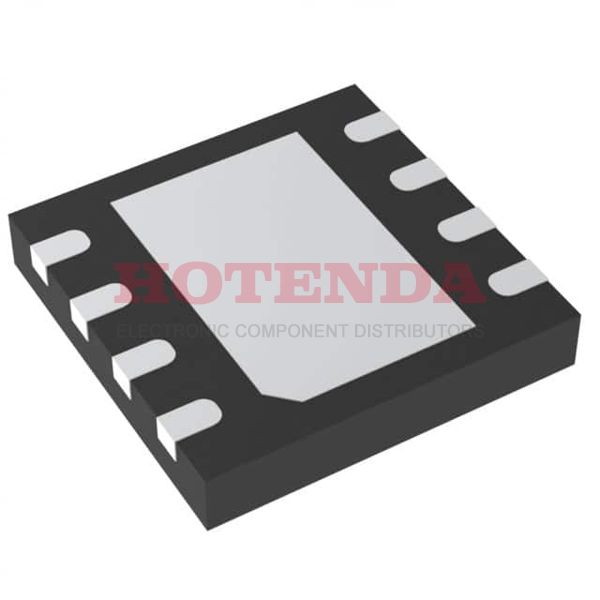

Name: ADM7150ACPZ-1.8-R2
Brand: Analog Devices, Inc.
SKU: ADM7150ACPZ-1.8-R2
Price: 10.09000 USD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Lifecycle Status	PRODUCTION (Last Updated: 1 month ago)
Surface Mount	YES
Number of Pins	8
Dropout Voltage@Current (Max)	0.5@400MA/1@800MA
Package Type	LFCSP EP
Dropout Voltage@Current (Typ)	0.3@400MA/0.6@800MA
Operating Temp Range	-40C to 125C
Packaging	Tape and Reel
JESD-609 Code	e3
Pbfree Code	no
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	8
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	8
Number of Outputs	1
Output Voltage	1.8(V)
Output Type	Fixed
Max Output Current	800mA
Polarity	Positive
Operating Supply Current	8.6mA
Output Current	800(mA)
Output Voltage 1	1.8V
Input Voltage (Min)	4.5(V)
Min Input Voltage	4.5V
Max Input Voltage	16V
Power Supply Rejection Ratio (PSRR)	-86dB
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Line Regulation	0.01%/V
Load Regulation	0.4%/A(Typ)
Input Voltage	16(V)
Length	3mm
Width	3mm
RoHS Status	Non-RoHS Compliant

ADM7150ACPZ-1.8-R2 Product Details

ADM7150ACPZ-1.8-R2 Description

ADM7150ACPZ-1.8-R2 belongs to the family of low dropout (LDO) linear regulators operating from 4.5 V to 16 V and providing up to 800 mA of output current. With an advanced proprietary architecture, the ADM7150ACPZ-1.8-R2 LDO linear regulator is able to deliver high power supply rejection, ultralow output noise, and achieve excellent line and load transient response with a 10 μF ceramic output capacitor. It, available in 8-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC package, is able to provide a very compact solution and excellent thermal performance for applications where up to 800 mA of output current in a small, low profile footprint is required.
