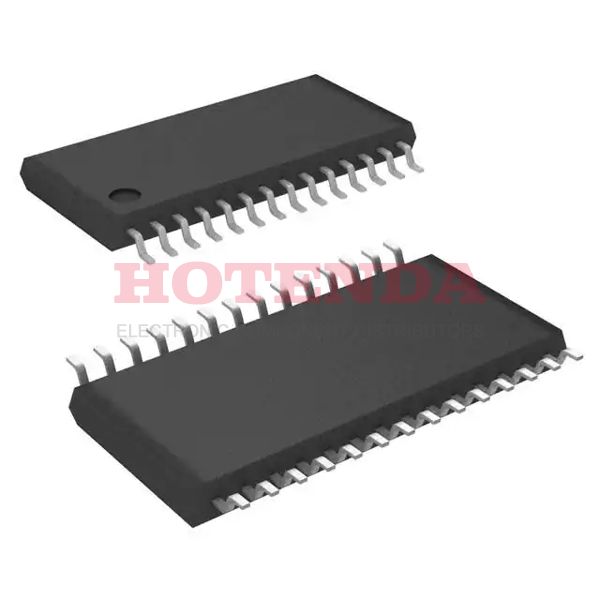

ADUC814BRU Overview
A 28-TSSOP (0.173, 4.40mm Width) package is included. In total, it has 17 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~125°C TA. MicroConverter® ADuC8xx series components belong to this electrical component. Its program memory size is 8KB 8K x 8. There is a 8052 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 28 terminations in total. The part works on a 8-bit basis. An output voltage of 3V volts is available for this Microcontroller chip. The Microcontroller chip has NO DMA channels. 8kB memory size belongs to the part. ADUC814 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 16.78MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel NO. On the chip, there are 28 pins that are accessible. A total of 3 timers/counters are included in the package. A total of 28 pins are present. This 8 Programmable I/O section allows you to program the device in many different ways depending on what you need. As a few examples, there are additional features like CAN ALSO OPERATE AT 5V SUPPLY that are available in the software. In total, there are 6 channels for the ADC on this board.
ADUC814BRU Features
28-TSSOP (0.173, 4.40mm Width) package
Mounting type of Surface Mount
ADUC814BRU Applications
There are a lot of Analog Devices Inc.
ADUC814BRU Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
