Name: ADG419BRM-REEL
Brand: Hotenda
SKU: ADG419BRM-REEL
Availability: InStock

new-10%

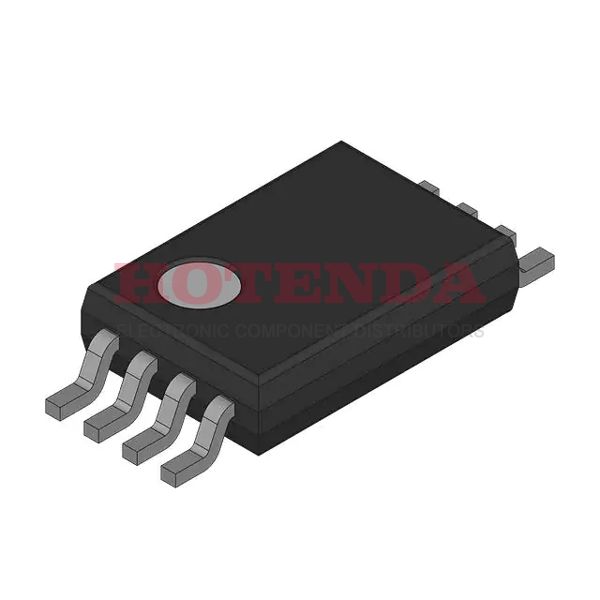

ADG419BRM-REEL

Manufacturer part number:ADG419BRM-REEL

Manufacturer:Hotenda

Description:SPDT 35Ohm Analog Switches BREAK-BEFORE-MAKE ADG419 8 Pins 250pA 15V 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:ADG419BRM-REEL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Lead, Tin
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Number of Pins	8
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Resistance	35Ohm
Subcategory	Multiplexer or Switches
Max Power Dissipation	35μW
Technology	CMOS
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Supply Voltage	15V
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	ADG419
Pin Count	8
Number of Outputs	2
Operating Supply Voltage	12V
Polarity	Non-Inverting
Number of Channels	1
Interface	Parallel
Max Supply Voltage	25V
Min Supply Voltage	5V
Operating Supply Current	100pA
Power Dissipation	35μW
Max Supply Current	1μA
Turn On Delay Time	160 ns
Supply Type	Dual, Single
Neg Supply Voltage-Nom (Vsup)	-15V
Turn-Off Delay Time	160 ns
Max Dual Supply Voltage	22V
On-State Resistance (Max)	35Ohm
Min Dual Supply Voltage	13.5V
High Level Output Current	30mA
Dual Supply Voltage	15V
Multiplexer/Demultiplexer Circuit	2:1
Off-state Isolation-Nom	80 dB
Current - Leakage (IS(off)) (Max)	250pA
Channel Capacitance (CS(off), CD(off))	6pF
Switch Circuit	SPDT
Crosstalk	-90dB @ 1MHz
Switching	BREAK-BEFORE-MAKE
Voltage - Supply, Dual (V±)	±15V
Length	4.9mm
Width	3.9mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

ADG419BRM-REEL Product Details

ADG419BRM-REEL Overview

Presented in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width), this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tape & Reel (TR). In Surface Mount, you'll find this switch device. There is 2:1 ratio between the number of multiplexers and demultiplexers. Operating temperature around -40°C~125°C TA extended. Total terminations are 8. A high-quality output is provided by the electrical component's 1 channels. A 15V voltage supply should turn on and run the electronic component. The electronic part body is injected with 8 pins. On the other hand, analog switches can be constructed using SPDT switching circuits. Try searching with ADG419 to find analog multiplexer variants. Internally, this switch multiplexer has a resistance of 35Ohm. The datasheets for the 8 pins explain the functions. A analogue multiplexer of this type is a Multiplexer or Switches. It is normally recommended that users do not supply the multiplexer with voltages higher than 25V. The analog switch ic is of the Dual, Single supply type and is cost-effective. The lowest voltage the electronic part should receive is 5V. The analogue multiplexer could operate on 100pA current. Put voltage above 1μA on the multiplexer to cause damage. Despite this switch device's dual supply capability, its voltage should not exceed 22V. When using dual power supplies, you should attach at least 13.5V. The electronic component can function from 12V. 2 outputs are included in the analogue multiplexer.
