Name: M39012/82B3001
Brand: Amphenol SV Microwave
SKU: M39012/82B3001
Price: 35.65000 USD
Availability: InStock

new

M39012/82B3001

Manufacturer part number:M39012/82B3001

Manufacturer:Amphenol SV Microwave

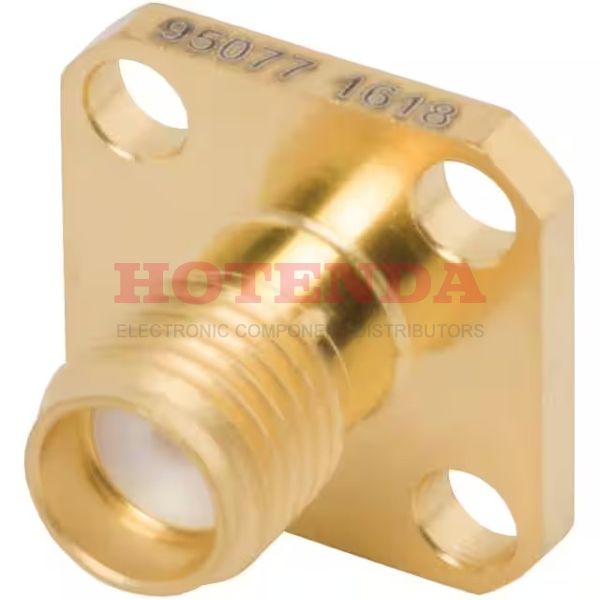

Description:Jack, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Case Package:SOT-23

Datasheet:M39012/82B3001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mounting Type	Panel Mount
Mounting Feature	Flange
Shell Material	STEEL
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Stainless Steel
Mounting Style	Free Hanging
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Frequency - Max	18GHz
Package	Bulk
Base Product Number	M39012
Mfr	Amphenol SV Microwave
Product Status	Active
Manufacturer	Amphenol
Brand	Amphenol / SV Microwave
Operating Temperature	-65°C~165°C
Packaging	Bulk
Series	--
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	Jack, Female Socket
Gender	Jack (Female)
Fastening Type	Threaded
Subcategory	MIL-Spec / MIL-Type
Total Number of Contacts	1
Orientation	Straight
Ingress Protection	--
Reach Compliance Code	unknown
Shell Finish	GOLD OVER NICKEL
Body Length or Diameter	0.5 inch
Body Breadth	0.5 inch
Contact Gender	FEMALE
Housing Color	Gold
Body Depth	0.375 inch
Contact Style	COAX
Contact Resistance	2mOhm
Insulation Resistance	5000000000 Ω
Body/Shell Style	JACK
Cable Type	Jack (Female)
Dielectric Withstanding Voltage	1050VAC V
Impedance	50Ohm
Connector Style	SMA
Number of Ports	1
Durability	500 Cycles
Frequency (Max)	18GHz
Mating Cycles	500
Contact Termination	Solder
Product Type	RF MIL Spec Connectors
Includes	--
Operating Frequency-Max	18GHz
Insertion Loss	0.12 dB
Body Finish	Gold
Cable Group	RG-405 (.086 Semi Rigid)
VSWR	1.21
Shield Termination	Solder
Characteristic Impedance	50 Ω
Product	Connectors
Features	--
Terminal Length	0.125 inch
Product Category	RF MIL Spec Connectors
RF Series	SMA
Length - Termination	0.125 inch
RoHS Status	Non-RoHS Compliant

M39012/82B3001 Product Details

M39012/82B3001 Overview

Packaging is Jack, Female Socket.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the -- Series.A variety of tasks can be performed using its 1 ports.Devices operate at -65°C~165°C operating temperatures.
