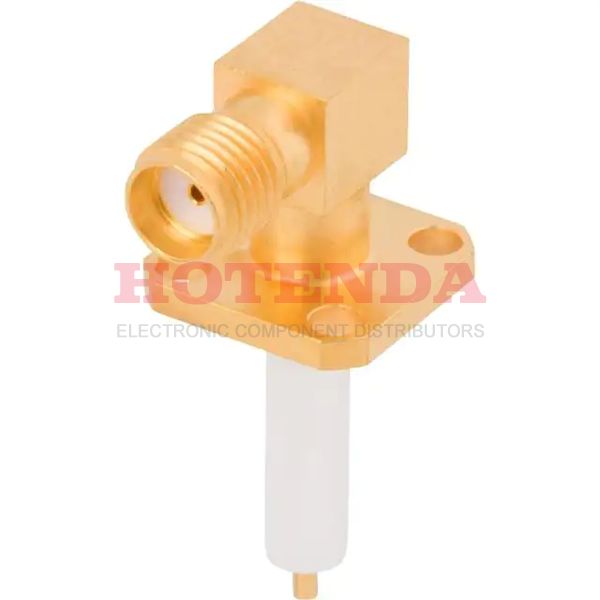

Name: 2960-6025
Brand: Amphenol SV Microwave
SKU: 2960-6025
Price: 46.23000 USD
Availability: InStock

new

2960-6025

Manufacturer part number:2960-6025

Manufacturer:Amphenol SV Microwave

Description:Receptacle, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -

Case Package:SOT-23

Datasheet:2960-6025 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mounting Type	Panel Mount, Right Angle
Contact Plating	Gold
Mounting Feature	Flange
Insulation Material	TEFLON
Shell Material	STEEL
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Stainless Steel
Mounting Option 1	LOCKING
Mounting Style	Flange Mount
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Package	Tray
Base Product Number	2960
Mfr	Amphenol SV Microwave
Product Status	Active
Frequency - Max	12.4 GHz
Manufacturer	Amphenol
Brand	Amphenol / SV Microwave
RoHS	Details
Packaging	Bulk
Operating Temperature	-
Series	SMA
JESD-609 Code	e4
Feature	Extended Insulation
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle, Female Socket
Gender	Female
Fastening Type	Threaded
Subcategory	RF Interconnects
MIL Conformance	YES
Total Number of Contacts	1
Orientation	Right Angle
Ingress Protection	-
Reach Compliance Code	unknown
Shell Finish	GOLD OVER NICKEL
Termination Style	Solder
Reliability	MIL-G-45204
Body Length or Diameter	0.5 inch
Body Breadth	0.505 inch
Contact Gender	FEMALE
Operating Temperature (Min)	-65°C
Housing Color	Gold
Polarity	Standard
Contact Style	COAX
Contact Resistance	2mOhm
Insulation Resistance	5000000000 Ω
Body/Shell Style	JACK
Termination Type	SOLDER LUG
Cable Type	-
Dielectric Withstanding Voltage	1400VAC V
Coupling Type	THREADED
Impedance	50Ohm
Connector Style	SMA
Number of Ports	1
Durability	500 Cycles
Contact Finish Termination	GOLD OVER NICKEL
Frequency (Max)	12.4GHz
Mating Cycles	500
Contact Termination	Solder
Product Type	RF Connectors / Coaxial Connectors
Includes	-
Max Frequency	12.4 GHz
Operating Frequency-Max	12.4 GHz
Insertion Loss	-
Body Finish	Gold
Cable Group	-
Shield Termination	Solder
Characteristic Impedance	50 Ω
Product	Single Port Connectors
Features	Extended Insulation
Terminal Length	0.115 inch
Product Category	RF Connectors / Coaxial Connectors
RF Series	SMA
IP Rating	-
RoHS Status	ROHS3 Compliant

2960-6025 Product Details

2960-6025 Overview

This product is packaged in a Receptacle, Female Socket box.There is a Panel Mount, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number SMA belongs to the SMA Series.There are 1 ports available for managing a variety of tasks on this device.In many ways, it is more powerful due to its Extended Insulation feature.This device operates at a temperature of -.The maximum frequency of the device is 12.4 GHz.
