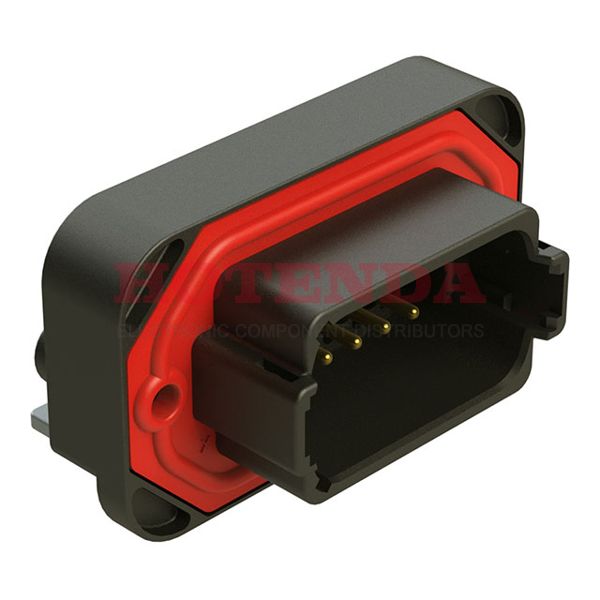

Name: AT13-12PB-BM02
Brand: Amphenol Sine Systems Corp
SKU: AT13-12PB-BM02
Price: 14.28000 USD
Availability: InStock

new

AT13-12PB-BM02

Manufacturer part number:AT13-12PB-BM02

Manufacturer:Amphenol Sine Systems Corp

Description:BoardLock™ AT Series 2-Row Receptacle Solder Copper Alloy Tray Through Hole, Right Angle Gold Thermoplastic 12-Position Board to Cable/Wire 1.390 35.30mm Height

Case Package:SOT-23

Datasheet:AT13-12PB-BM02 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole, Right Angle
Contact Shape	Circular
Insulation Material	Thermoplastic
Operating Temperature	-55°C~125°C
Packaging	Tray
Series	BoardLock™ AT
Feature	Board Guide, Mating Flange, Mounting Flange, Potting Wall
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	12
Applications	Automotive, Industrial
Number of Rows	2
Voltage - Rated	250V
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	13A
Ingress Protection	IP67
Insulation Height	1.390 35.30mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Insulation Color	Black
Row Spacing - Mating	0.358 (9.10mm)
Contact Length - Post	0.122 3.10mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Gold
RoHS Status	ROHS3 Compliant

AT13-12PB-BM02 Product Details

AT13-12PB-BM02 Overview

This product is packaged in a Receptacle box.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the BoardLock™ AT Series.There is the possibility of using the device for Automotive, Industrial.In many ways, Board Guide, Mating Flange, Mounting Flange, Potting Wall makes it more powerful.Operating temperature is set to -55°C~125°C.
