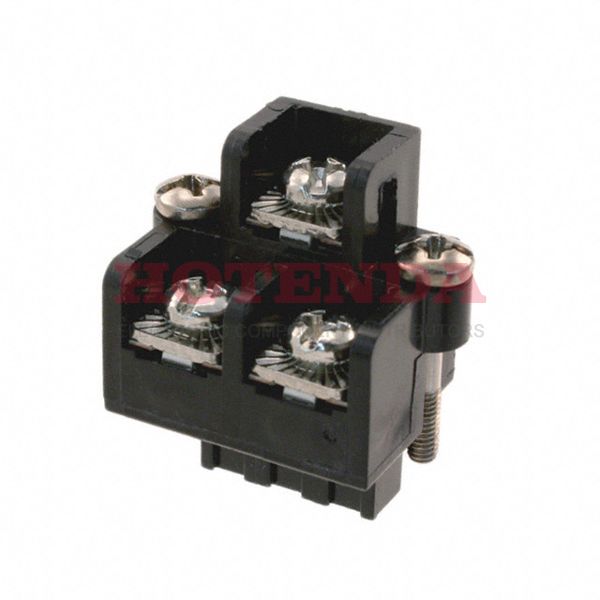

Name: FXPT03200E
Brand: Amphenol PCD
SKU: FXPT03200E
Price: 2.79000 USD
Availability: InStock

new-10%

FXPT03200E

Manufacturer part number:FXPT03200E

Manufacturer:Amphenol PCD

Description:FXPT03200E datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol PCD stock available on our website

Case Package:SOT-23

Datasheet:FXPT03200E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	PPO
Housing Material	Polyphenylene Oxide (PPO)
Operating Temperature	105°C
Packaging	Bulk
Published	2008
Series	FXP FlexiPlug®
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Part Status	Active
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Voltage - Rated DC	300V
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.690 17.53mm
Current Rating	15A
Termination Style	Screw with Captive Plate
Lead Pitch	3.5mm
Number of Contacts	3
Voltage	300V
Number of Levels	2
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	1.13 Nm (10.0 Lb-In)
Positions Per Level	1, 2
Plug Wire Entry	90°
Wire Strip Length	7.87mm
Length	26.41mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FXPT03200E Product Details

FXPT03200E Overview

Mounting type is Free Hanging (In-Line).This product is packaged in a case marked Bulk.It's part of the FXP FlexiPlug? Series.This feature makes it more powerful in a number of ways due to its Mating Flange, Retention Latches (Non-Wire Side) feature.Free Hanging, Panel is used to mount the part.105°C Operating Temperature is used by the device.It shares many benefts with other Plug, Female Sockets products.
