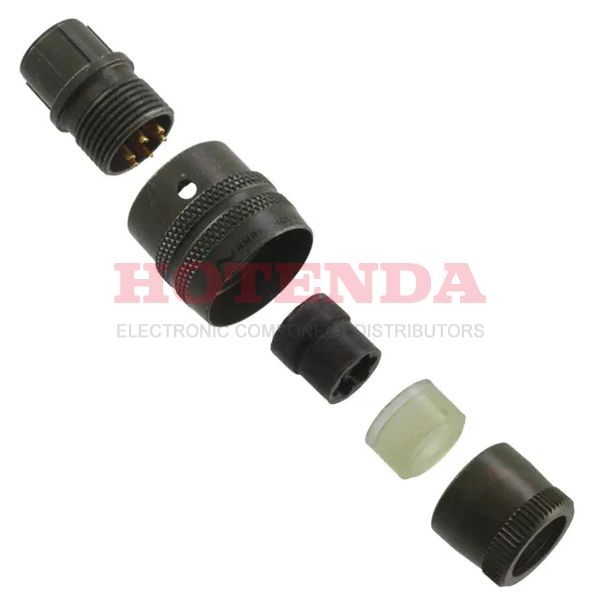

Name: PT06E-10-6S
Brand: Amphenol Industrial Operations
SKU: PT06E-10-6S
Price: 23.84000 USD
Availability: InStock

new

PT06E-10-6S

Manufacturer part number:PT06E-10-6S

Manufacturer:Amphenol Industrial Operations

Description:Plug, Female SocketsAluminumFree Hanging (In-Line)6 PositionsSolder CupGoldOlive Drab Chromate over CadmiumBulkN (Normal)Bayonet Lock

Case Package:SOT-23

Datasheet:PT06E-10-6S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Package / Case	Metal
Shell Material	Aluminum
Insert Material	Neoprene
Body Material	Aluminium
Backshell Material, Plating	Aluminum, Olive Drab Cadmium
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2006
Series	MIL-DTL-26482 Series I, PT
Feature	Backshell, Coupling Nut
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Plug, Female Sockets
Number of Positions	6
Color	Olive Drab
Applications	Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender	Receptacle
Voltage - Rated	600V
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	6
Orientation	N (Normal)
Shielding	Unshielded
Ingress Protection	Environment Sealed
Current Rating	7.5A
Military Standard	MIL-DTL-26482
Shell Finish	Olive Drab Chromate over Cadmium
Shell Size - Insert	10-6
Approval Agency	UL
Contact Gender	Female
Empty Shell	NO
Backshell Type	SOLID
Contact Style	Socket
Environmental Characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating	Cadmium, Chromate
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	20 AWG
Body Plating	Cadmium
Length	32.15mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant

PT06E-10-6S Product Details

PT06E-10-6S Overview

The packaging contains Plug, Female Sockets.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.There is a product in the MIL-DTL-26482 Series I, PT Series.Packages with the Metal enclose a device.In many ways, its Backshell, Coupling Nut feature makes it more powerful.By Cable, Free Hanging, the part is mounted.In this case, the device operates at -55°C~125°C Operating Temperature.
